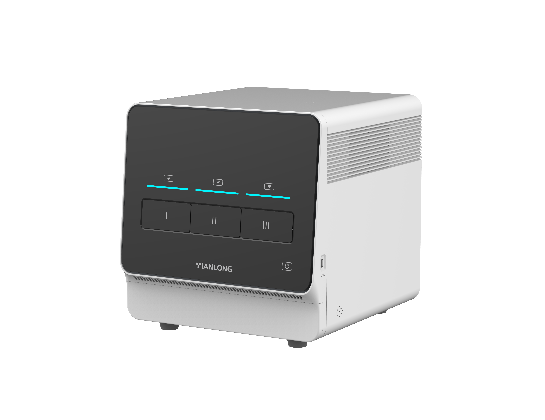

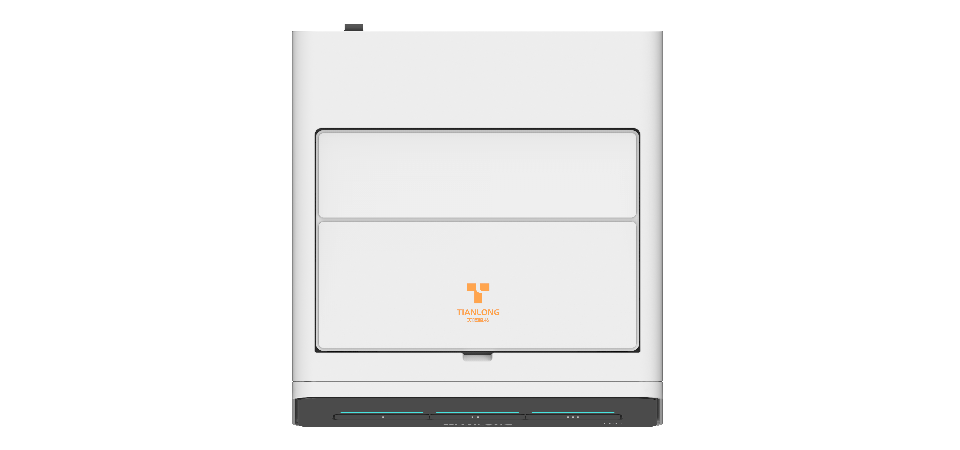

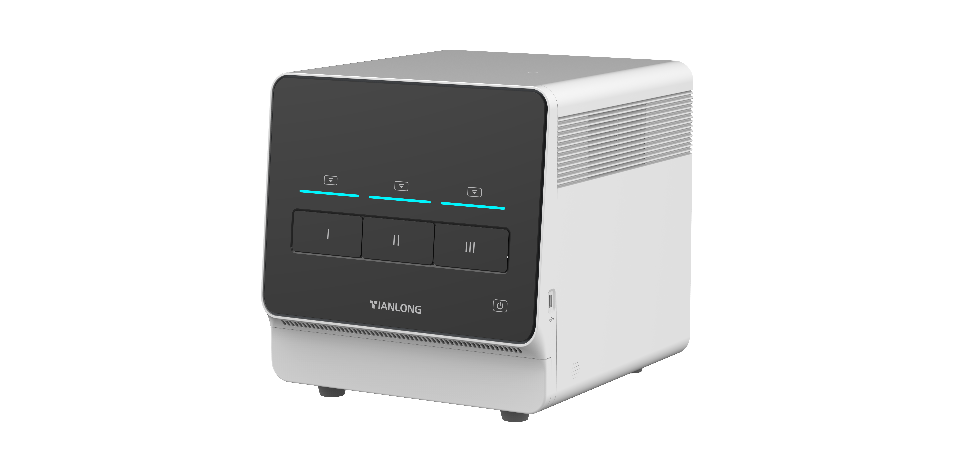

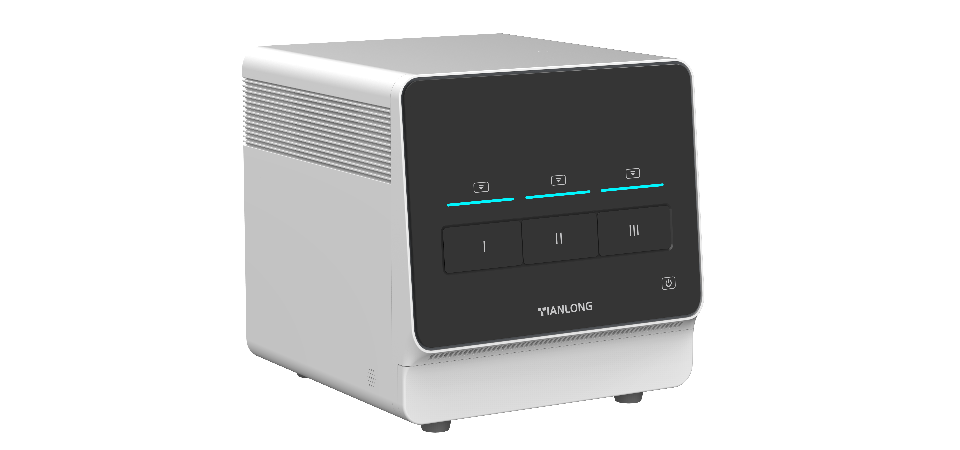

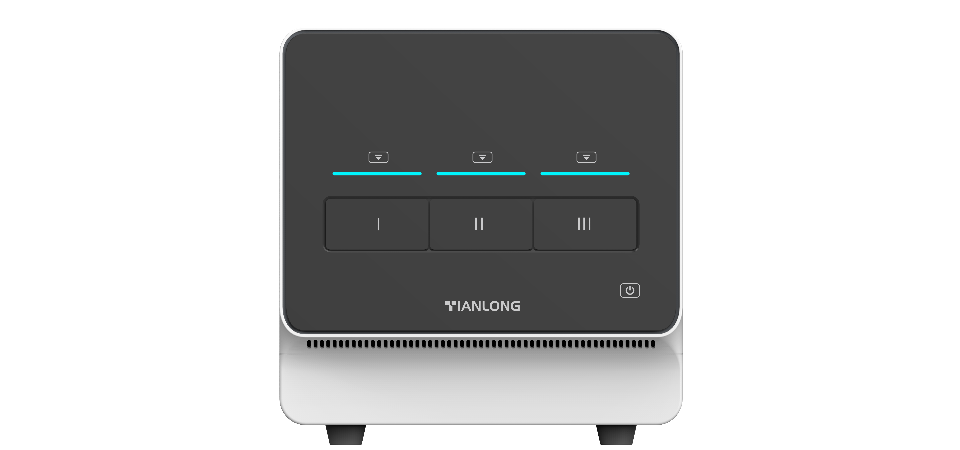

Gentier X3 Series Real-time PCR System
Tianlong Gentier X3 Series Real-time PCR System innovates in flexibility and allows users to control three independent blocks in the same PCR system, saving your time and budget. Maximum 3×32-well samples can be run in three different protocols on three independent thermal blocks simultaneously. With the powerful and efficient temperature control system, user-friendly operational designs, Tianlong Gentier X3 Series can provide maximal reliability and efficiency for all your real-time PCR needs.
-
-
01Multi-block design to meet different needs
Gentier X3 Series has three independently controlled blocks. Maximum 3×32-well samples can be run in three different protocols on three independent thermal blocks simultaneously.
-
02Only 2s for 32 wells fluorescence scanning
With 6/4 fluorescence channels, GentierX3 Series can complete 32 wells of fluorescence scanning in one block within 2s, which improves efficiency for lab professionals.
-
03Efficient temperature control
3 independent thermal blocks with compensation heating function, temperature accuracy, and temperature precision are all ≤ 0.1℃; hot lid with innovative pressure sensing technology ensures that consumables do not deform and reagents do not evaporate;
-
04Powerful software analysis
Gentier X3 Series can offer multiple functions including absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, endpoint fluorescence, etc.
-
05User-friendly design for professionals

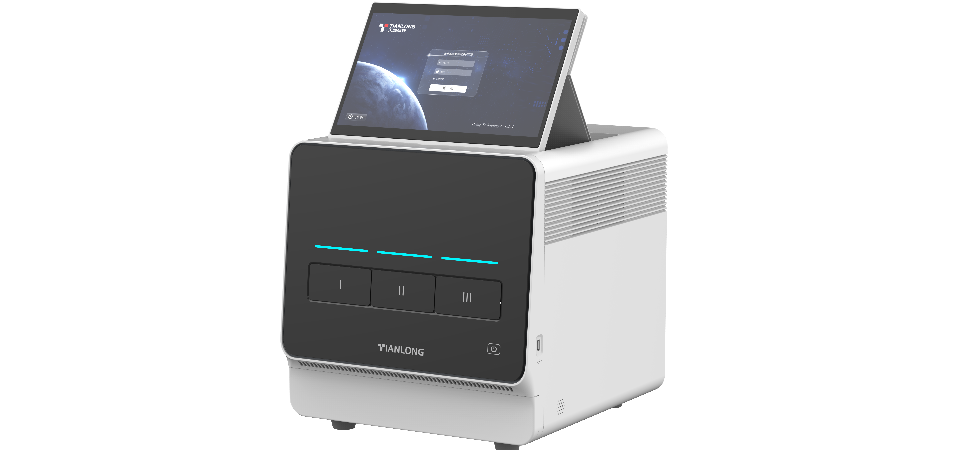

Built-in 13.3-inch full-color touch, adjustable for different angles; Standalone configuration and PC control configuration; Power failure protection design can recover the experiment automatically;
Specifications
| Model | Gentier X3E | Gentier X3S | Gentier X3R | Gentier X3C |
| Touch Screen | YES | NO | YES | NO |
| Stand Alone Operation | √ | × | √ | × |
| Throughput | 32 х 3 | 32 х 3 | 32 х 3 | 32 х 3 |
| Fluorescence Scanning Time | 2s for 32 wells fluorescence scanning | 2s for 32 wells fluorescence scanning | 2s for 32 wells fluorescence scanning | 2s for 32 wells fluorescence scanning |
| Fluorescence Channels | 6 | 6 | 4 | 4 |
| Dye Compatibility | Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. Channel 5: Alexa Fluor 680, etc. Channel 6: Tamra, Cy3, NED, etc. | Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. Channel 5: Alexa Fluor 680, etc. Channel 6: Tamra, Cy3, NED, etc. | Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. | Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. |
| Heating Rate | Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s | Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s | Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s | Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s |
| Cooling Rate | Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s | Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s | Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s | Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s |
| Temperature Accuracy | ≤0.1℃ | ≤0.1℃ | ≤0.1℃ | ≤0.1℃ |
| Temperature Uniformity | ±0.2℃ | ±0.2℃ | ±0.2℃ | ±0.2℃ |
| Temperature Precision | ≤ 0.1°C | ≤ 0.1°C | ≤ 0.1°C | ≤ 0.1°C |
| Repeatability | CV ≤ 1% | CV ≤ 1% | CV ≤ 1% | CV ≤ 1% |
| Linear Correlation | │r│≥ 0.995 | │r│≥ 0.995 | │r│≥ 0.995 | │r│≥ 0.995 |
| Sample Cabin | Three independent sample cabin | Three independent sample cabin | Three independent sample cabin | Three independent sample cabin |
| Lightsource | High-brightness, long-life, maintenance-free LED light source | High-brightness, long-life, maintenance-free LED light source | High-brightness, long-life, maintenance-free LED light source | High-brightness, long-life, maintenance-free LED light source |
| Key Applications | Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc. | Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc. | Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc. | Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc. |
| Special Temperature Protocol | Touchdown step, long step, gradient step, standard step and so on. | Touchdown step, long step, gradient step, standard step and so on. | Touchdown step, long step, gradient step, standard step and so on. | Touchdown step, long step, gradient step, standard step and so on. |
| Data Storage | 1000 results can be stored in machine | 1000 results can be stored in machine | 1000 results can be stored in machine | 1000 results can be stored in machine |
| Power Failure Protection | Automatically start running experiments after power supply | Automatically start running experiments after power supply | Automatically start running experiments after power supply | Automatically start running experiments after power supply |
| Communication Specification | Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0; | Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0; | Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0; | Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0; |
| Power Supply and Power Consumption | AC 100~240V;50/60Hz; 1000VA; | AC 100~240V;50/60Hz; 1000VA; | AC 100~240V;50/60Hz; 1000VA; | AC 100~240V;50/60Hz; 1000VA; |
| Suitable Consumables | Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white) | Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white) | Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white) | Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white) |
| Dimension | 380mm(L) × 410mm (W) × 395mm (H) | 380mm(L) × 410mm (W) × 395mm (H) | 380mm(L) × 410mm (W) × 395mm (H) | 380mm(L) × 410mm (W) × 395mm (H) |
| Weight | 34kg | 34kg | 34kg | 34kg |

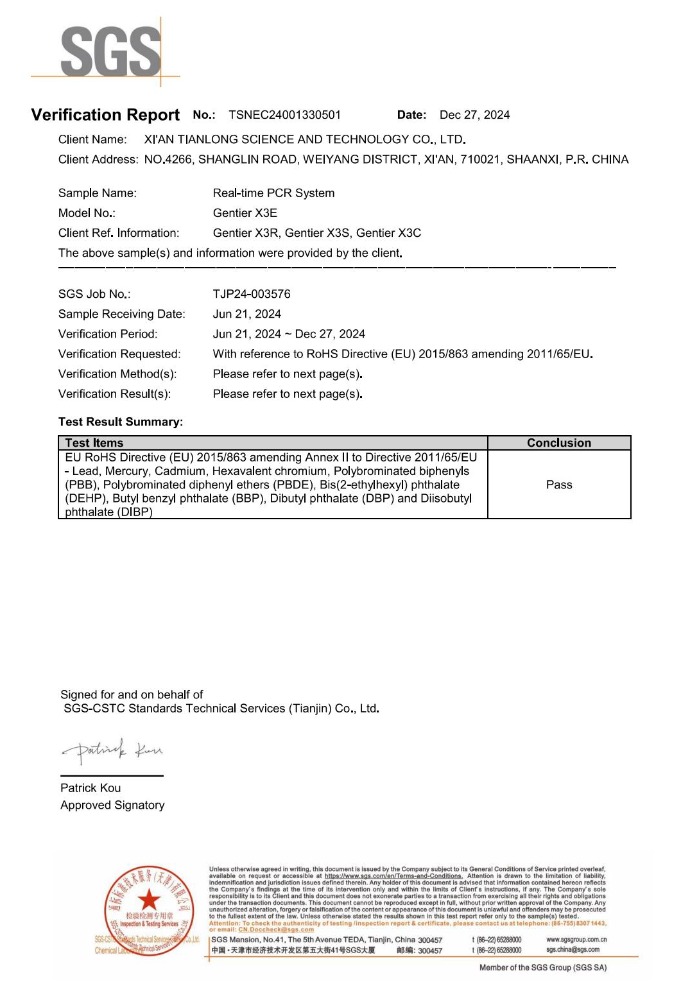

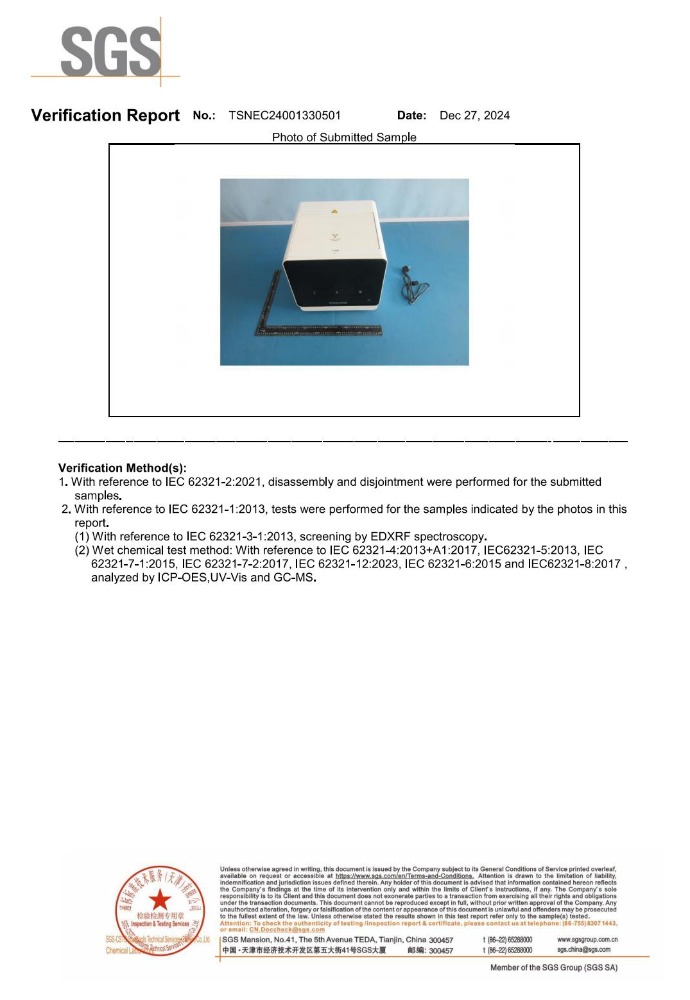

Certificado | Marcado IVDR CE | Marcado IVDR CE | Marcado IVDR CE | Marcado IVDR CE |
| Gentier X3E | |
|---|---|
| Touch Screen | YES |
| Stand Alone Operation | √ |
| Throughput | 32 х 3 |
| Fluorescence Scanning Time | 2s for 32 wells fluorescence scanning |
| Fluorescence Channels | 6 |
| Dye Compatibility | Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. Channel 5: Alexa Fluor 680, etc. Channel 6: Tamra, Cy3, NED, etc. |
| Heating Rate | Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s |
| Cooling Rate | Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s |
| Temperature Accuracy | ≤0.1℃ |
| Temperature Uniformity | ±0.2℃ |
| Temperature Precision | ≤ 0.1°C |
| Repeatability | CV ≤ 1% |
| Linear Correlation | │r│≥ 0.995 |
| Sample Cabin | Three independent sample cabin |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Key Applications | Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc. |
| Special Temperature Protocol | Touchdown step, long step, gradient step, standard step and so on. |
| Data Storage | 1000 results can be stored in machine |
| Power Failure Protection | Automatically start running experiments after power supply |
| Communication Specification | Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0; |
| Power Supply and Power Consumption | AC 100~240V;50/60Hz; 1000VA; |
| Suitable Consumables | Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white) |
| Dimension | 380mm(L) × 410mm (W) × 395mm (H) |
| Weight | 34kg |
Certificado | Marcado IVDR CE |
| Gentier X3S | |
|---|---|
| Touch Screen | NO |
| Stand Alone Operation | × |
| Throughput | 32 х 3 |
| Fluorescence Scanning Time | 2s for 32 wells fluorescence scanning |
| Fluorescence Channels | 6 |
| Dye Compatibility | Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. Channel 5: Alexa Fluor 680, etc. Channel 6: Tamra, Cy3, NED, etc. |
| Heating Rate | Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s |
| Cooling Rate | Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s |
| Temperature Accuracy | ≤0.1℃ |
| Temperature Uniformity | ±0.2℃ |
| Temperature Precision | ≤ 0.1°C |
| Repeatability | CV ≤ 1% |
| Linear Correlation | │r│≥ 0.995 |
| Sample Cabin | Three independent sample cabin |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| High-brightness, long-life, maintenance-free LED light source | Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc. |
| Special Temperature Protocol | Touchdown step, long step, gradient step, standard step and so on. |
| Data Storage | 1000 results can be stored in machine |
| Power Failure Protection | Automatically start running experiments after power supply |
| Communication Specification | Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0; |
| Power Supply and Power Consumption | AC 100~240V;50/60Hz; 1000VA; |
| Suitable Consumables | Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white) |
| Dimension | 380mm(L) × 410mm (W) × 395mm (H) |
| Weight | 34kg |
Certificado | Marcado IVDR CE |
| Gentier X3R | |
|---|---|
| Touch Screen | YES |
| Stand Alone Operation | √ |
| Throughput | 32 х 3 |
| Fluorescence Scanning Time | 2s for 32 wells fluorescence scanning |
| Fluorescence Channels | 4 |
| Dye Compatibility | Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. |
| Heating Rate | Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s |
| Cooling Rate | Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s |
| Temperature Accuracy | ≤0.1℃ |
| Temperature Uniformity | ±0.2℃ |
| Temperature Precision | ≤ 0.1°C |
| Repeatability | CV ≤ 1% |
| Linear Correlation | │r│≥ 0.995 |
| Sample Cabin | Three independent sample cabin |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Key Applications | Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc. |
| Special Temperature Protocol | Touchdown step, long step, gradient step, standard step and so on. |
| Data Storage | 1000 results can be stored in machine |
| Power Failure Protection | Automatically start running experiments after power supply |
| Communication Specification | Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0; |
| Power Supply and Power Consumption | AC 100~240V;50/60Hz; 1000VA; |
| Suitable Consumables | Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white) |
| Dimension | 380mm(L) × 410mm (W) × 395mm (H) |
| Weight | 34kg |
Certificado | Marcado IVDR CE |
| Gentier X3C | |
|---|---|
| Touch Screen | NO |
| Stand Alone Operation | × |
| Throughput | 32 х 3 |
| Fluorescence Scanning Time | 2s for 32 wells fluorescence scanning |
| Fluorescence Channels | 4 |
| Dye Compatibility | Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. |
| Heating Rate | Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s |
| Cooling Rate | Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s |
| Temperature Accuracy | ≤0.1℃ |
| Temperature Uniformity | ±0.2℃ |
| Temperature Precision | ≤ 0.1°C |
| Repeatability | CV ≤ 1% |
| Linear Correlation | │r│≥ 0.995 |
| Sample Cabin | Three independent sample cabin |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Key Applications | Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc. |
| Special Temperature Protocol | Touchdown step, long step, gradient step, standard step and so on. |
| Data Storage | 1000 results can be stored in machine |
| Power Failure Protection | Automatically start running experiments after power supply |
| Communication Specification | Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0; |
| Power Supply and Power Consumption | AC 100~240V;50/60Hz; 1000VA; |
| Suitable Consumables | Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white) |
| Dimension | 380mm(L) × 410mm (W) × 395mm (H) |
| Weight | 34kg |
| Dimension | 380mm(L) × 410mm (W) × 395mm (H) |
Certificado | Marcado IVDR CE |
