automated nucleic acid extraction

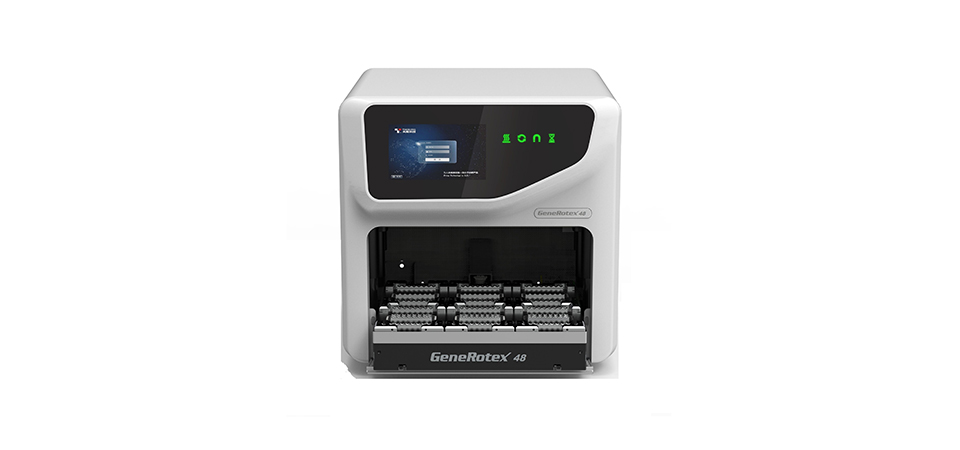

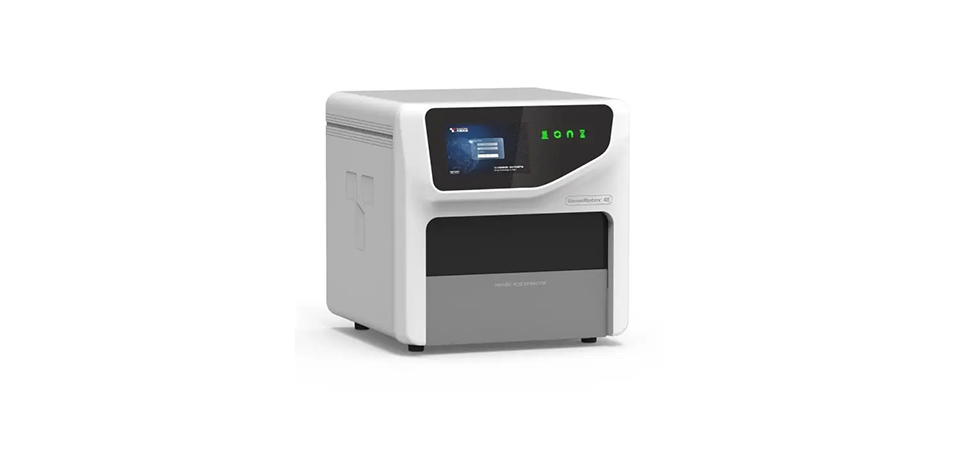

    • GeneRotex 48 Nucleic Acid Extractor

      Tianlong GeneRotex 48 nucleic acid extractor is designed with our innovative rotary mixing technology (RMT), which can reduce aerosol generated during the purification process, minimize the risk of false positives caused by cross-contamination, and ensure the accuracy of experiment results. Compatible with Tianlong large volume nucleic acid extraction kits, GeneRotex 48 can greatly improve detection sensitivity and extraction efficiency.

    • GeneRotex 48 Nucleic Acid Extractor
Product Manual
Product Brochure
Product Video
Quote
Specifications
ModelGeneRotex 48
Throughput1-48
Reaction Volume50-3000 uL
Sample Volume1000 uL
Compatible ConsumablesCustomized 48-deep-well plates
Rotational Speed≤3000rpm
Heating TemperatureLysis heating: room temperature to 120°C
Elution heating: room temperature to 120°C
Mixing MethodRotary mixing
Operation Mode7-inch full-color LCD touch screen operation
Program StorageUp to 1000 programs can be storaged
Protocol ManagementFlexible to create, edit and delete protocols
Automatic ControlMotor-driven automatic opening and closing of the experiment cabinet
Magnetic Bead Residue≤1%
Power Failure ProtectionChoose freely whether or not to continue the experiment when the power is on again after cutting off
Contamination ControlNegative pressure HEPA exhaust filter module;
Built-in UV disinfection module
Connection Port TypeUSB port
Weight45kg (net)
Instrument Dimensions510mm*490mm*480mm (W*L*H)
Power Supply and Power ConsumptionAC 100V-240V, 50/60HZ; 600VA

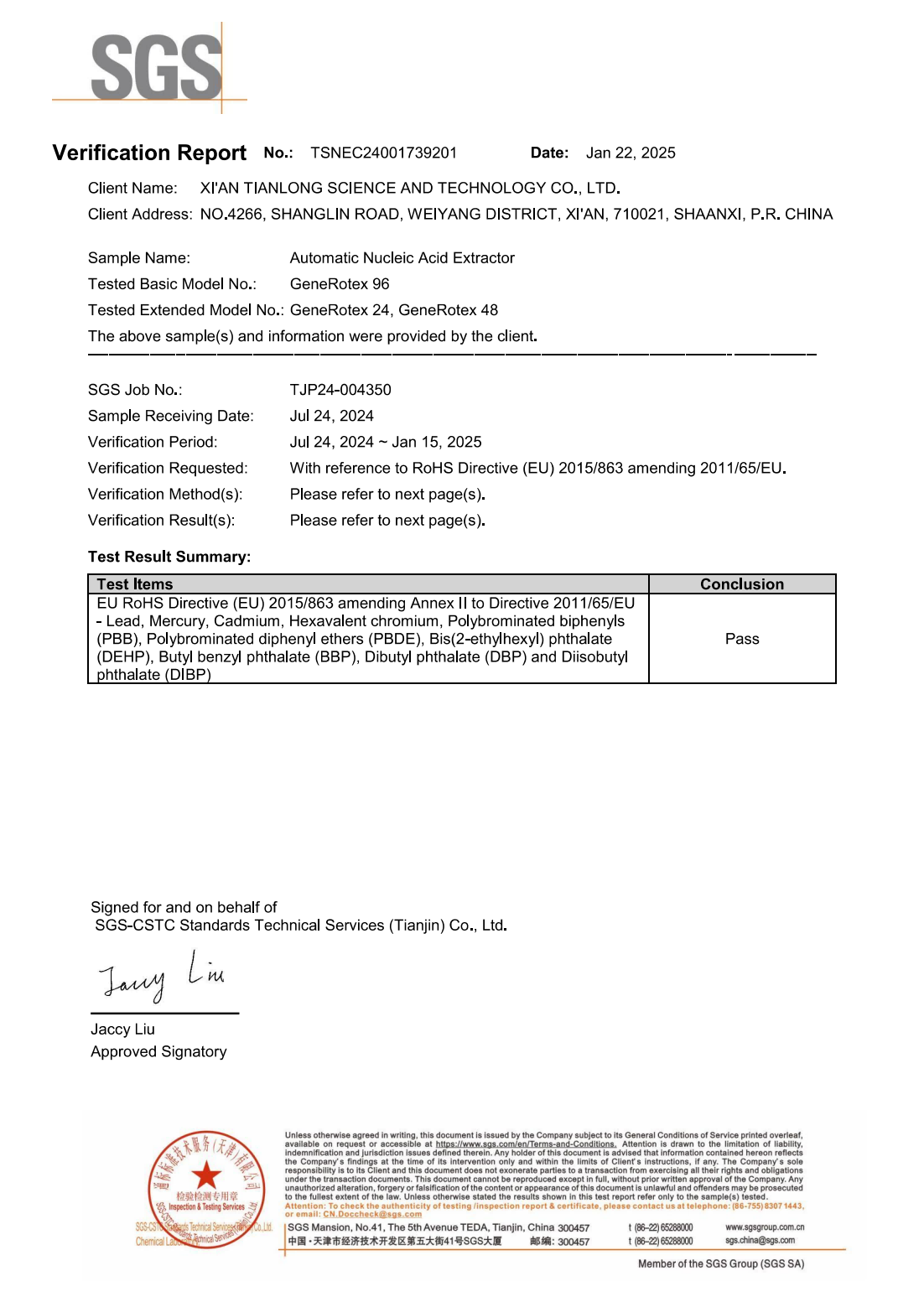

CertificateIVDR CE
GeneRotex 48
Throughput1-48
Reaction Volume50-3000 uL
Sample Volume1000 uL
Compatible ConsumablesCustomized 48-deep-well plates
Rotational Speed≤3000rpm
Heating Temperature

Lysis heating: room temperature to 120°C

Elution heating: room temperature to 120°C

Mixing MethodRotary mixing
Operation Mode7-inch full-color LCD touch screen operation
Program StorageUp to 1000 programs can be storaged
Protocol ManagementFlexible to create, edit and delete protocols
Automatic ControlMotor-driven automatic opening and closing of the experiment cabinet
Magnetic Bead Residue≤1%
Power Failure ProtectionChoose freely whether or not to continue the experiment when the power is on again after cutting off
Contamination Control

Negative pressure HEPA exhaust filter module;

Built-in UV disinfection module

Connection Port TypeUSB port
Weight45kg (net)
Instrument Dimensions510mm*490mm*480mm (W*L*H)
Power Supply and Power ConsumptionAC 100V-240V, 50/60HZ; 600VA
CertificateIVDR CE
