automated nucleic acid extraction

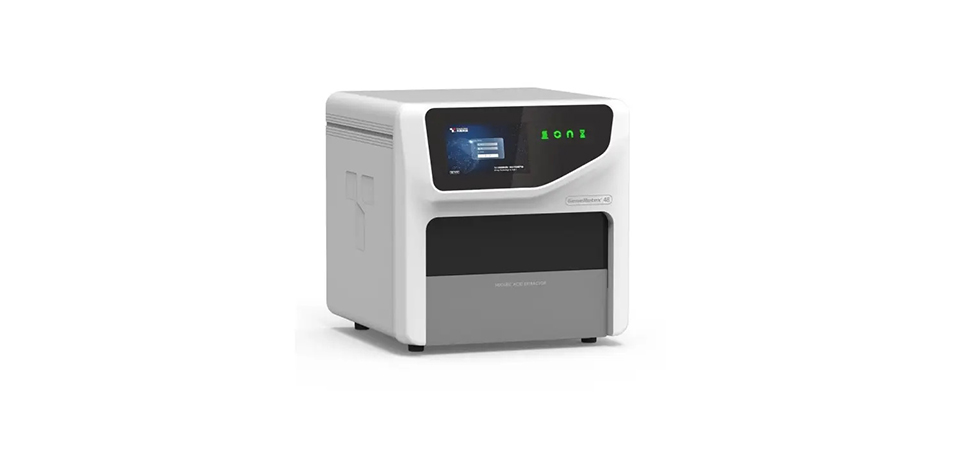

    • GeneRotex 96 Nucleic Acid Extractor

      The Tianlong GeneRotex 96 nucleic acid extraction system is an automated nucleic acid extraction system featuring our innovative rotary mixing technology (RMT), which can significantly reduce aerosol generated during the purification process, minimize the risk of false positive results caused by cross-contamination, and increase the accuracy of experiment results. The GeneRotex 96 Tianlong nucleic acid extractor is compatible with 96 deep-well plates and six tube strips, making this nucleic acid extraction system capable of offering high-throughput extraction and reducing waste without the conventional inconveniences caused by fixed throughput. Flexible and efficient, the GeneRotex 96 nucleic acid extractor offer 1 to 96 samples per run.

    • b4_img1.png
Product Manual
Product Brochure
Product Video
Quote
Specifications
ModelGeneRotex 96
Throughput1-96
Reaction Volume30-1000uL
Sample Volume200uL
Compatible Consumables96-deep-well plates
customized 6 strip tube
Inter-well Extraction DifferenceCV ≤3%
Rotational Speed≤3000rpm
Heating TemperatureLysis heating: room temperature to 120°C
Elution heating: room temperature to 120°C
Mixing MethodRotary mixing
Operation Mode7-inch full-color LCD touch screen operation
Program StorageUp to 1000 programs can be storaged
Protocol ManagementFlexible to create, edit and delete protocols
Automatic ControlMotor-driven automatic opening and closing of the experiment cabinet
Magnetic Bead Residue≤1%
Power Failure ProtectionChoose freely whether or not to continue the experiment when the power is on again after cutting off
Contamination ControlNegative pressure HEPA exhaust filter module;
Built-in UV disinfection module
Connection Port TypeUSB port
Weight45kg (net)
Instrument Dimensions510mm*490mm*480mm (W*L*H)
Power Supply and Power ConsumptionAC 100V-240V, 50/60HZ; 600VA
CertificateIVDR CE
GeneRotex 96
Throughput1-96
Reaction Volume30-1000uL
Sample Volume200uL
Compatible Consumables 96-deep-well plates
customized 6 strip tube
Inter-well Extraction DifferenceCV ≤3%
Rotational Speed≤3000rpm
Heating Temperature

Lysis heating: room temperature to 120°C

Elution heating: room temperature to 120°C

Mixing MethodRotary mixing
Operation Mode7-inch full-color LCD touch screen operation
Program StorageUp to 1000 programs can be storaged
Protocol ManagementFlexible to create, edit and delete protocols
Automatic ControlMotor-driven automatic opening and closing of the experiment cabinet
Magnetic Bead Residue≤1%
Power Failure ProtectionChoose freely whether or not to continue the experiment when the power is on again after cutting off
Contamination Control

Negative pressure HEPA exhaust filter module;

Built-in UV disinfection module

Connection Port TypeUSB port
Weight45kg (net)
Instrument Dimensions510mm*490mm*480mm (W*L*H)
Power Supply and Power ConsumptionAC 100V-240V, 50/60HZ; 600VA
CertificateIVDR CE
