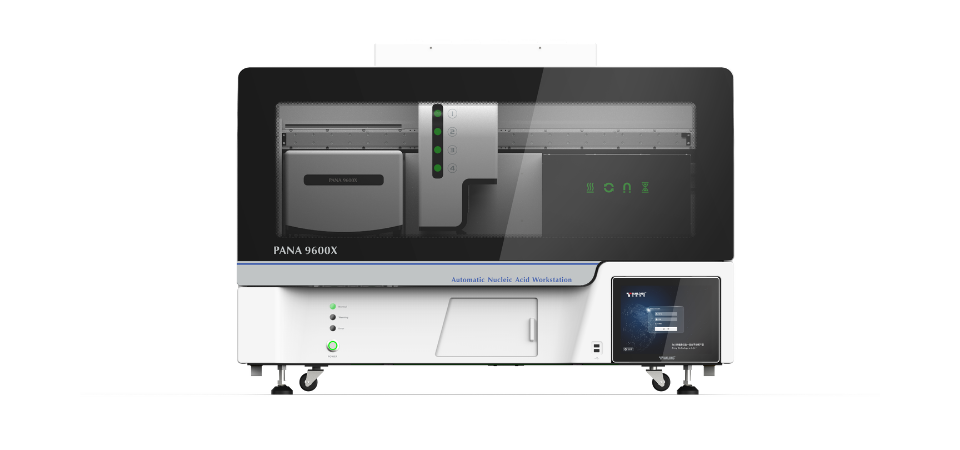

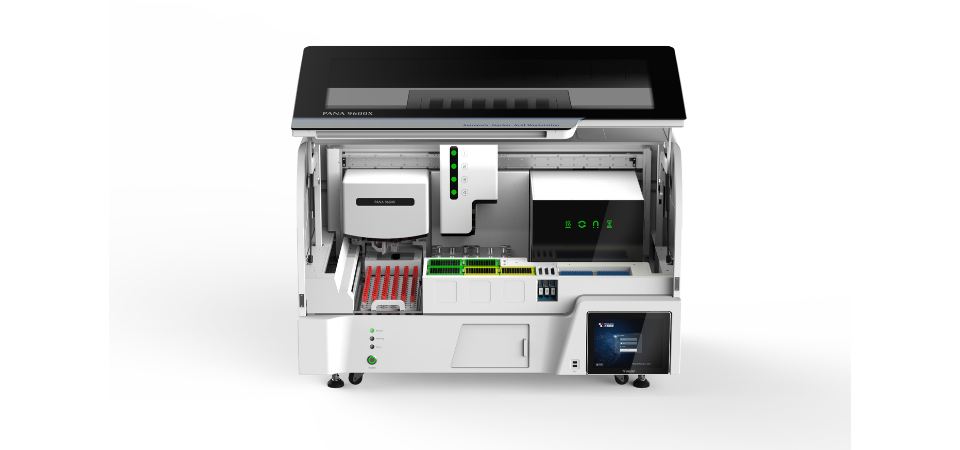

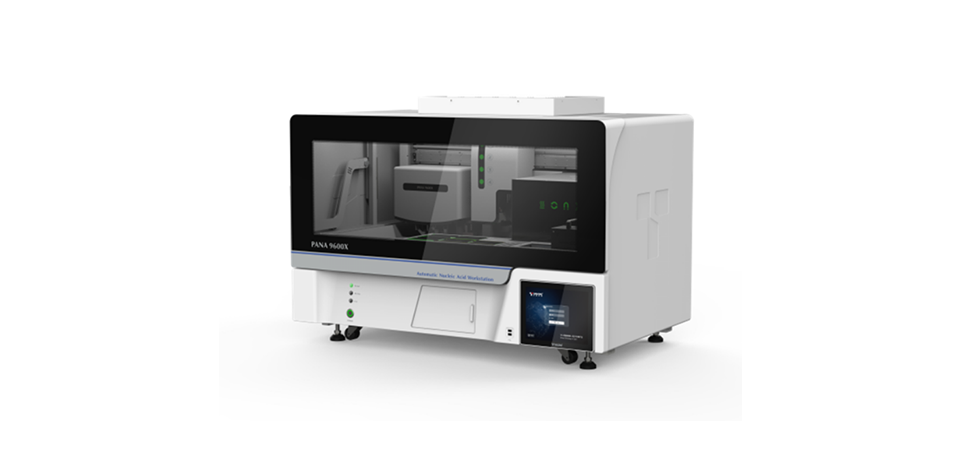

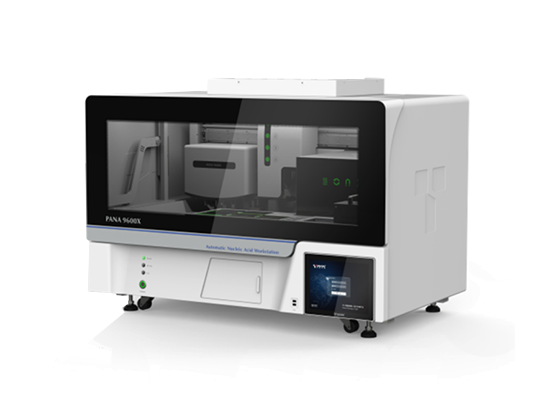

PANA 9600X Automatic Nucleic Acid Workstation
Tianlong PANA 9600X automatic workstation, based on magnetic beads method and rotary nucleic acid extraction technology, is designed to greatly streamline nucleic acid detection and extraction workflow. This automated nucleic acid extraction machine integrates the steps of automatic capping/decapping for sample tubes, sample information scanning, sample loading, nucleic acid extraction, and PCR system setup, which makes your experiment easy to start and greatly saves time for professionals. With compatible nucleic acid extraction kits, the nucleic acids needed can be extracted quickly and efficiently from various sample types including whole blood, serum, plasma, and swab scrub solution for specific downstream applications.
-
-
01
Highly automated workflow and rapid extraction: With one-key operation in PANA 9600X, automatic capping/decapping for sample tubes, sample information scanning, sample loading, nucleic acid extraction, and PCR system setup for 96 samples can be finished within 40-80 min (relying on the reagent), allowing for rapid nucleic acid detection
More reliable results you can depend on: With precise sample loading, accurate temperature ramp control, and precise liquid transfer design, you can expect to see consistent and precise results for each of your assays, PCR nucleic acid test included.
-
02
Smart Information Technology:The workstation can efficiently scan sample information, identifies reagent details, and recognizes consumables visually. Moreover, it supports seamless integration into the Laboratory Information System (LIS) to enhance workflow management and data tracking within the lab.
High Flexibility: PANA 9600X workstation can not only accommodate a wide range of sample types and extraction kits but also support the simultaneous setup of four PCR systems. This flexibility allows it to meet diverse DNA and RNA extractions needs.
-
03
Minimized contamination measures: With rotary mixing for nucleic acid extraction, HEPA filter, smart drop capture, strict zoning, and UV disinfection technology, cross-contamination can be reduced to ensure accurate nucleic acid detection results.
.png)
| Model | PANA9600X |
| Sample Capacity | 1-96 |
| Technical Principles | Magnetic beads method; Rotary nucleic acid extraction technology |
| Processing Capacity | Nucleic acid extraction of 96 samples per run; 4 different PCR system can be set up |
| Sample Types | Plasma, serum, whole blood, swab scrub solution, etc. |
| Sample Loading Channels | 4 |
| Pipetting Range | 1μL-1000μL |
| Pipetting Performance | Below 15 μL: accuracy: A≤3.0%, repeatability: CV≤2.0%; 15 μL to 50 μL: accuracy: A≤1.5%, repeatability: CV≤1.5%; Above 50 μL: accuracy: A≤1.2%, repeatability: CV≤1.0%. |
| Liquid Level Detection | CapSense/Gas pressure sensor |
| Sample Tubes | Compatible with standard blood collection tube, various thread sampling tube, etc. |
| Temperature Control | Lysis and elution, temperature flexible to control between 35℃ and 120℃ |
| Extraction Consumables | 96 deep-well plates, 6 strip tubes |
| Information Tool | Barcode scanning for reagent identification; visualized consumable recognition |
| PCR reagent chamber | Avoid light design; power-on automatic refrigeration (4℃ ~8℃) |
| PCR Consumables | Compatible with 0.1mL, 0.2mL 8 strip tube, and 96-well plates |
| Temperature Accuracy | ≤2.0℃ |
| Temperature Uniformity | ±1.2℃ |
| Minimized Contamination | Anti-droplet: air tightness and anti-droplet design and an external droplet design; Strict zoning; Directional exhaust; HEPA filter; UV disinfection |
| Information Technology | Scanning the bar codes of multiple samples one by one while sample holder is loaded Information connection of Sample tube-Deep well plate-PCR tube Easy connection with LIS (laboratory information system) |
| Packaging Information | 1370mm(L)*810mm(W)*960mm(H); 235kg(net); 12-inch touch screen |
| Interfaces | Ethernet, USB |
| Power Supply | AC 100-240V, 50-60Hz |
| Certificate | IVDR CE |
| PANA9600X | |
|---|---|
| Sample Capacity | 1-96 |
| Technical Principles | Magnetic beads method; Rotary nucleic acid extraction technology |
| Processing Capacity | Nucleic acid extraction of 96 samples per run; 4 different PCR system can be set up |
| Sample Types | Plasma, serum, whole blood, swab scrub solution, etc. |
| Sample Loading Channels | 4 |
| Pipetting Range | 1μL-1000μL |
| Pipetting Performance | Below 15 μL: accuracy: A≤3.0%, repeatability: CV≤2.0%; 15 μL to 50 μL: accuracy: A≤1.5%, repeatability: CV≤1.5%; Above 50 μL: accuracy: A≤1.2%, repeatability: CV≤1.0%. |
| Liquid Level Detection | CapSense/Gas pressure sensor |
| Sample Tubes | Compatible with standard blood collection tube, various thread sampling tube, etc. |
| Temperature Control | Lysis and elution, temperature flexible to control between 35℃ and 120℃ |
| Extraction Consumables | 96 deep-well plates, 6 strip tubes |
| Information Tool | Barcode scanning for reagent identification; visualized consumable recognition |
| PCR reagent chamber | Avoid light design; power-on automatic refrigeration (4℃ ~8℃) |
| PCR Consumables | Compatible with 0.1mL, 0.2mL 8 strip tube, and 96-well plates |
| Temperature Accuracy | ≤2.0℃ |
| Temperature Uniformity | ±1.2℃ |
| Minimized Contamination | Anti-droplet: air tightness and anti-droplet design and an external droplet design; Strict zoning; Directional exhaust; HEPA filter; UV disinfection |
| Information Technology | Scanning the bar codes of multiple samples one by one while sample holder is loaded Information connection of Sample tube-Deep well plate-PCR tube Easy connection with LIS (laboratory information system) |
| Packaging Information | 1370mm(L)*810mm(W)*960mm(H); 235kg(net); 12-inch touch screen |
| Interfaces | Ethernet, USB |
| Power Supply | AC 100-240V, 50-60Hz |
| Certificate | IVDR CE |
