    • Panall 8000 All-In-One Molecular Diagnosis System

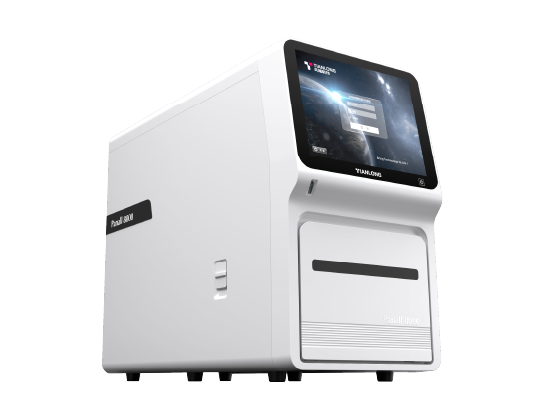

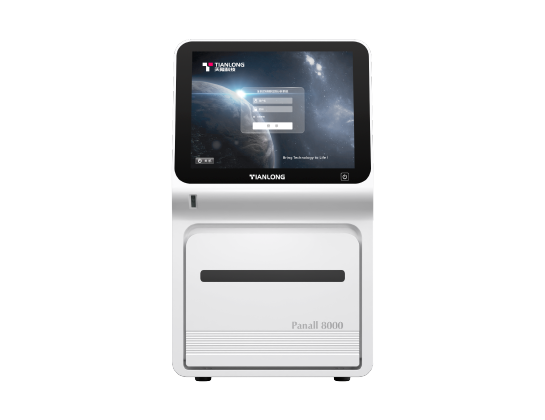

      Tianlong Panall 8000 is an all-in-one molecular diagnosis system that is both simple and secure. Integrates features of sample tube decapping/capping, sample loading, nucleic acid extraction, PCR setup, PCR detection, and result analysis. The Panall 8000 automated molecular diagnostic system helps achieve a true sample-in-result-out detection process and brings great convenience for professionals with only one-key operation.

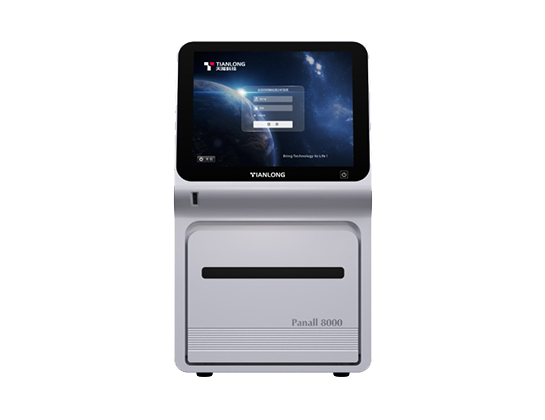

    • 5.1-847.png

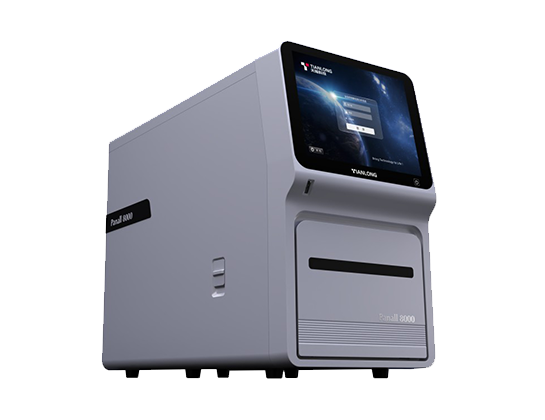

    • 5.2-795.png

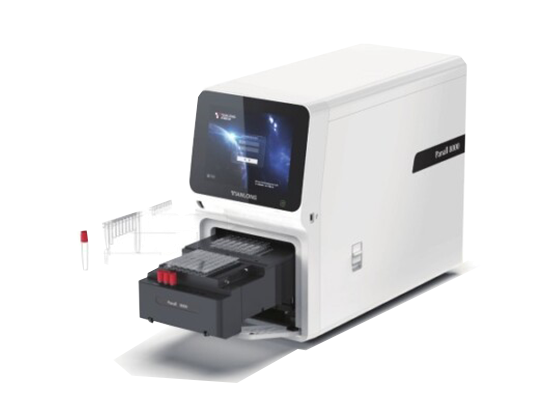

    • 5.3-963.png

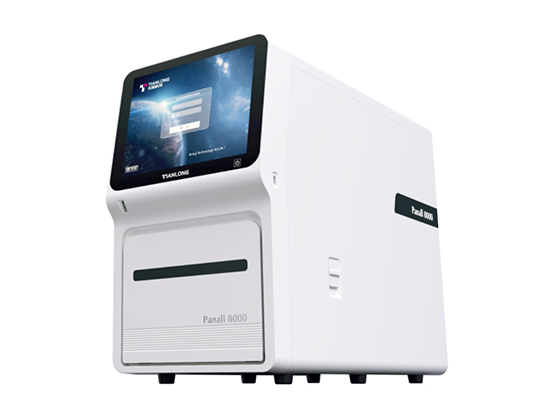

    • 5.4-147.png
Product Manual
Product Brochure
Product Video
Quote
Specifications
ModelPanall 8000
Sample Throughput1~8 samples at the same time
Pipetting Range20μL ~250μL
Detection time1~2 hours,relying on the reagent
Channel and Available FluoresceinChannel 1: FAM, SYBR Green I, etc.
Channel 2: VIC, HEX, TET, JOE, etc.
Channel 3: ROX, Texas Red, etc.
Channel 4: Cy5, etc.
Dimension750mm(L) × 350mm (W) × 580mm (H)
Weight75Kg
Pipetting Performance

20μL≤V<40μL: accuracy:A5.0%,repeatability:CV3.0%

40μL≤V<100μL: accuracy: A3.0%,repeatability: CV1.5%

V≥100μL: accuracy:A1.0%,repeatability:CV1.0%

Extraction Heating Rate

Average heating rate: 1.5℃/s

Extraction Temperature Accuracy

1.0%

PCR Heating Rate

Average heating rate: 4.5℃/s

Maximum heating rate: 6.1℃/s

PCR Cooling Rate

Average cooling rate: 3.5'℃/s

Maximum cooling rate: 5.0℃/s

PCR Temperature Accuracy

1.0%

Sample Testing Linearity and  Repeatabilit

Linear correlation: /r/≥ 0.998

Repeatability: CV ≤1.5%

Information Management

Sample information: with scanner inside

Panall 8000 can scan and record the sample information

Reagent information: visual system can automatically identify

the kit information and run the corresponding program

Minimized contamination

Directional exhaust & negative pressure system

HEPA fltration

UV disinfection

Shortest fixed path for sample operation

Data storage

1000 experiment files can be stored

Language

Chinese and English

Power supply and Power Consumption

AC 100~240V,50/60Hz:1200VA

Communication specification

Internet Port: TCP/lP protocol, Ethernet connection

USB Port: USB 2.0

Open system brochurePDF.png
Panall 8000
Sample Throughput1~8 samples at the same time
Pipetting Range10μL ~250μL
Detection time1~2 hours,relying on the reagent
Channel and Available FluoresceinChannel 1: FAM, SYBR Green I, etc.
Channel 2: VIC, HEX, TET, JOE, etc.
Channel 3: ROX, Texas Red, etc.
Channel 4: Cy5, etc.
Dimension750mm(L) × 350mm (W) × 580mm (H)
Weight75Kg
