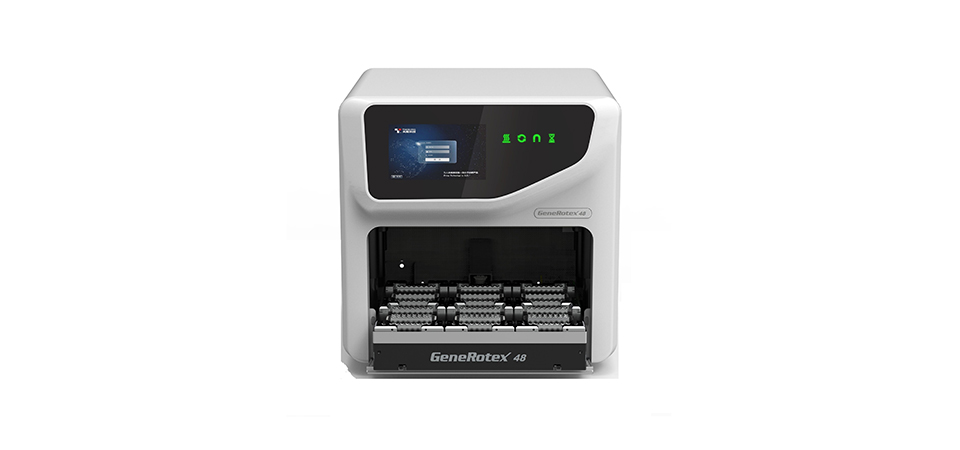

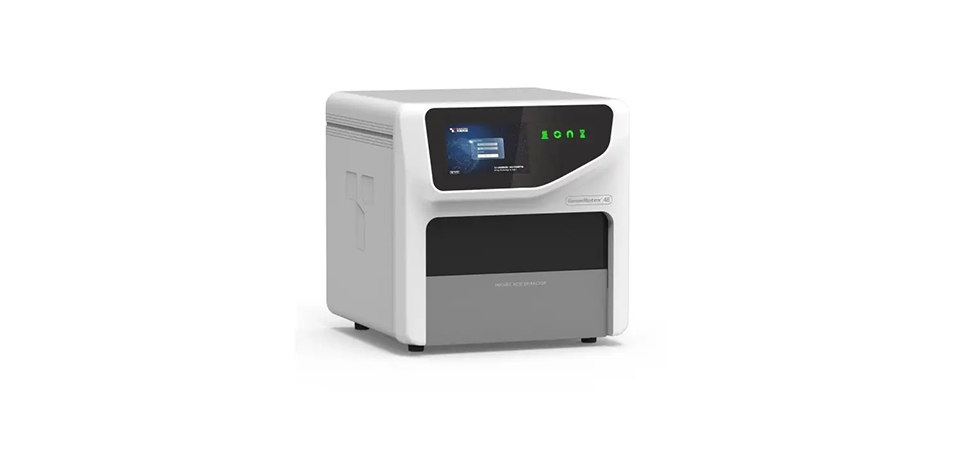

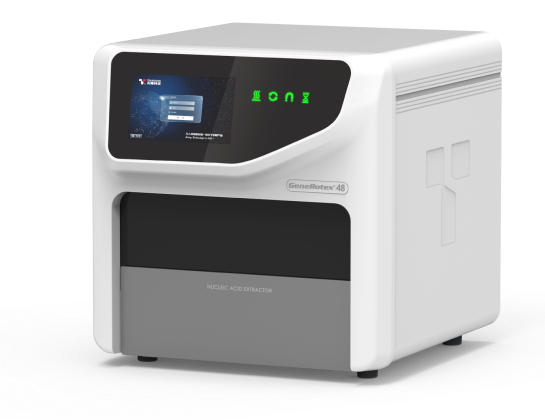

GeneRotex 96 Nucleic Acid Extractor
The Tianlong GeneRotex 96 nucleic acid extractor is an automated nucleic acid extraction system featuring our innovative rotary mixing technology (RMT), which can significantly reduce aerosol generated during the purification process, minimize the risk of false positive results caused by cross-contamination, and increase the accuracy of experiment results. The GeneRotex 96 Tianlong nucleic acid extractor is compatible with 96 deep-well plates and six tube strips, making this nucleic acid extraction system capable of offering high-throughput extraction and reducing waste without the conventional inconveniences caused by fixed throughput. Flexible and efficient, the GeneRotex 96 nucleic acid extractor offer 1 to 96 samples per run.
-
-
01
7 inch color touch screen: Built-in 7-inch full-color LCD screen, easy to operate the experiment.
High throughput and efficient extraction: The GeneRotex 96 Nucleic Acid Extractor system is a 6*16 extraction module with a special 96 deep well plate and 6 strip tube designed to ensure high throughput and reduce reagent waste. The GeneRotex 96 allows you to extract from 1 to 96 samples per run.
-
02
Innovative rotary mixing technology: Based on Tianlong’s innovative rotary mixing technology(RMT), GeneRotex 96 can reduce aerosol generated during the experiment and minimize the risk of false positives caused by cross-contamination while being super quiet during operation.
Negative pressure system with HEPA filtration: Featuring a negative pressure ventilation design, the GeneRotex69 automated nucleic acid extraction system is available for replaceable HEPA filtration which ensure the exhausted air has no biological hazards.
High purification and reliable results: Less than 1% residual amount of magnetic beads increase confidence in your experiment result.
| Model | GeneRotex 96 |
| Throughput | 1-96 |
| Certificate | CE CB RoHS |
| Reaction Volume | 30-1000uL |
| Sample Volume | 200uL |
| Compatible Consumables |
96-deep-well plates customized 6 strip tube |
| Inter-well Extraction Difference | CV ≤3% |
| Rotational Speed | ≤3000rpm |
| Heating Temperature |
Lysis heating: room temperature to 120°C Elution heating: room temperature to 120°C |
| Mixing Method | Rotary mixing |
| Operation Mode | 7-inch full-color LCD touch screen operation |
| Program Storage | Up to 1000 programs can be storaged |
| Protocol Management | Flexible to create, edit and delete protocols |
| Automatic Control | Motor-driven automatic opening and closing of the experiment cabinet |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Contamination Control |
Negative pressure HEPA exhaust filter module; Built-in UV disinfection module |
| Connection Port Type | USB port |
| Weight | 45kg (net) |
| Instrument Dimensions | 510mm*490mm*480mm (W*L*H) |
| Power Supply and Power Consumption | AC 100V-240V, 50/60HZ; 600VA |
| GeneRotex 96 |
|
|---|---|
| Throughput | 1-96 |
| Reaction Volume | 30-1000uL |
| Sample Volume | 200uL |
| Compatible Consumables |
96-deep-well plates customized 6 strip tube |
| Inter-well Extraction Difference | CV ≤3% |
| Rotational Speed | ≤3000rpm |
| Heating Temperature |
Lysis heating: room temperature to 120°C Elution heating: room temperature to 120°C |
| Mixing Method | Rotary mixing |
| Operation Mode | 7-inch full-color LCD touch screen operation |
| Program Storage | Up to 1000 programs can be storaged |
| Protocol Management | Flexible to create, edit and delete protocols |
| Automatic Control | Motor-driven automatic opening and closing of the experiment cabinet |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Contamination Control |
Negative pressure HEPA exhaust filter module; Built-in UV disinfection module |
| Connection Port Type | USB port |
| Weight | 45kg (net) |
| Instrument Dimensions | 510mm*490mm*480mm (W*L*H) |
| Power Supply and Power Consumption | AC 100V-240V, 50/60HZ; 600VA |
