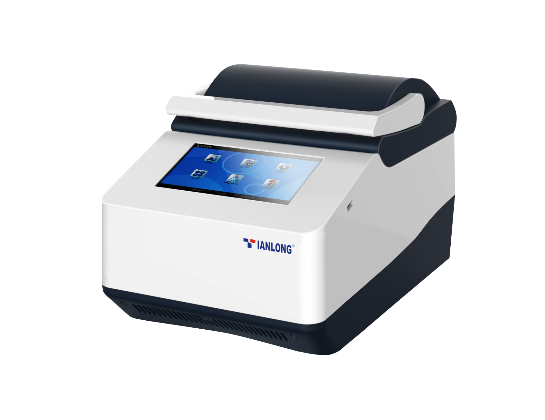

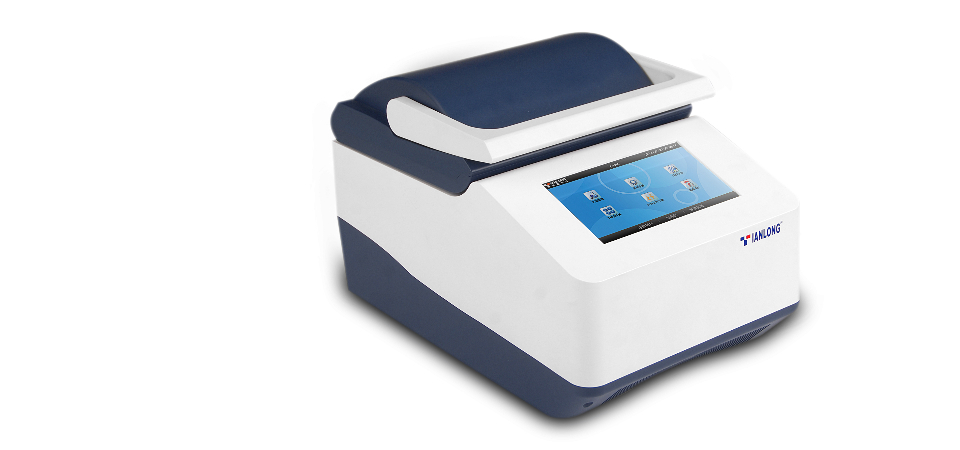

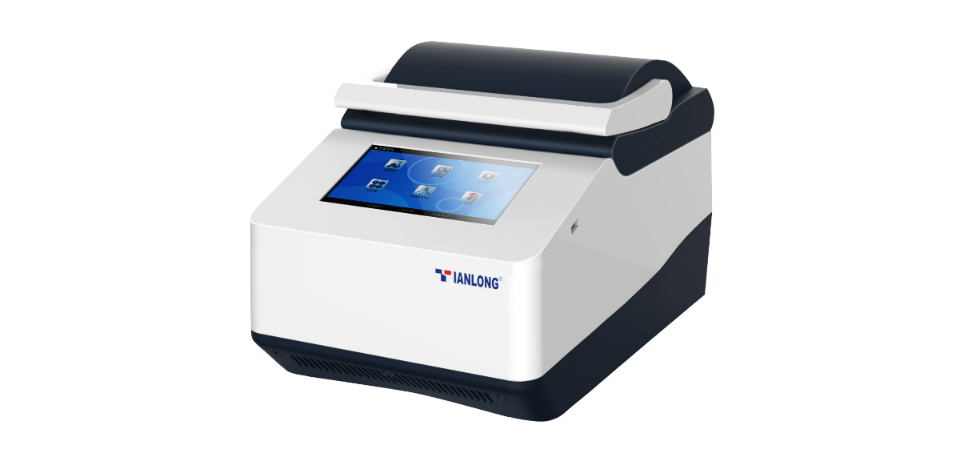

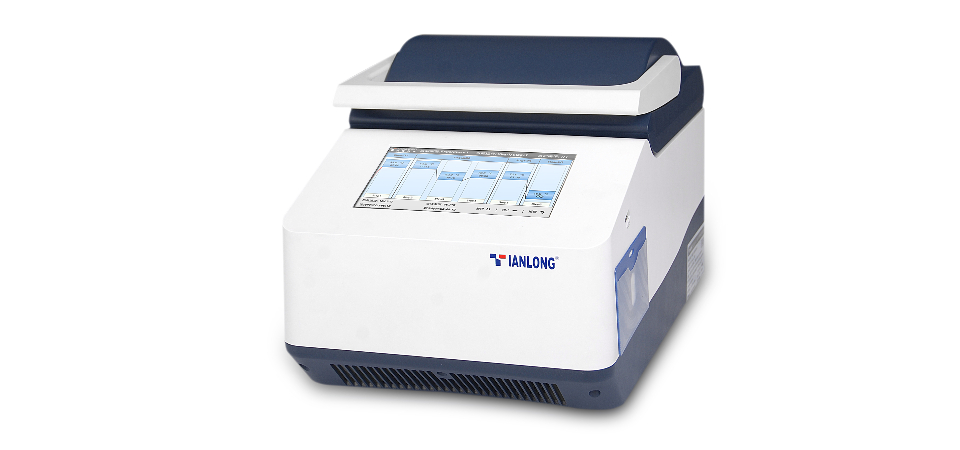

Genesy 96T PCR Thermal Cycler
The PCR thermal cycler Genesy 96T from Tianlong is easy to operate with a 7-inch color LCD touch screen. By taking advantage of its excellent thermal block, The Genesy 96T PCR Thermal Cycler brings you homogeneous and accurate temperatures, rapidly and precisely controlled ramp rates, and fast and reproducible PCR cycles. The Genesy 96T PCR Thermal Cycler is also remarkably simple and intuitive.
-
-
01
7-inch touch screen operation:
With 7-inch LCD touch screen, Genesy 96T PCR Thermal Cycler can function quickly through simple, one-touch commands. Compact design with small footprint, it is also easy to move. -
02
Gradient temperature control:
Genesy block features remarkable gradient technology to ensure ramp rates are identical in both gradient and normal modes. Optimized perform assay crosses a maximal 40℃ range via 12 gradient. -
03
Intuitive software design:
Intuitive software design and friendly interface make it simple even for first time users. Specialized user training is not required.
Flexible to share experiment protocols:
1000 experiment protocols can be saved in Genesy. Protocols can also share easily between different Genesys via USB flash disk. Personal protocols can be saved in your USB flash disk to quickly set up your own experiment on any Genesys.
Power failure protection design:
Unique power-off protection function can save all the set configurations after power-off, and allow the experiment continues when power-on.
Model | Genesy 96T |
Reaction volume | 0-100μL |
Thermo block | Aluminum |
Compatible Consumables | 0.2mL single tube, 0.2mL 8 strip tubes, 0.2mL 96-well plate(skirted, semi-skirted, unskirted) |
Temperature control range of the block | 4℃-99℃ |
Temperature control mode | Tube mode & Block mode |
Heating technology of the block | Peltier |
Gradient block | 12 row |
Gradient temperature span | 1℃-40℃ |
Gradient temperature range | 30℃-99.9℃ |
Lid temperature range | 40-110℃ |
Temperature uniformity | ±0.2℃ |
Block temperature accuracy | ±0.1℃ |
Heating rate | ≥ 3.5℃/s |
Cooling rate | ≥2.5℃/s |
Interfaces | USB, Ethernet |
Dimensions(W*D*H) | 260mm*400mm*260mm |
Weight | 11Kg |
Power supply | AC 100-240V, 50-60Hz |
Max. Power consumption | 600VA |
Running noise | <55dB |
Certificate | IVDR CE |
Genesy | |
---|---|
Reaction volume | 0-100μL |
Thermo block | Aluminum |
Compatible Consumables | 0.2mL single tube, 0.2mL 8 strip tubes, o.2mL 96-well plate(skirted, semi-skirted, unskirted) |
Temperature control range of the block | 4℃-99℃ |
Temperature control mode | Tube mode & Block mode |
Heating technology of the block | Peltier |
Gradient block | 12 row |
Gradient temperature span | 1℃-40℃ |
Gradient temperature range | 30℃-99.9℃ |
Lid temperature range | 40-110℃ |
Temperature uniformity | ±0.2℃ |
Block temperature accuracy | ±0.1℃ |
Heating rate | ≥ 3.5℃/s |
Cooling rate | ≥2.5℃/s |
Interfaces | USB, Ethernet |
Dimensions(W*D*H) | 260mm*400mm*260mm |
Weight | 11KG |
Power supply | AC 100-240V, 50-60Hz |
Max. Power consumption | 600VA |
Running noise | <55dB |
Certificate | IVDR CE |
