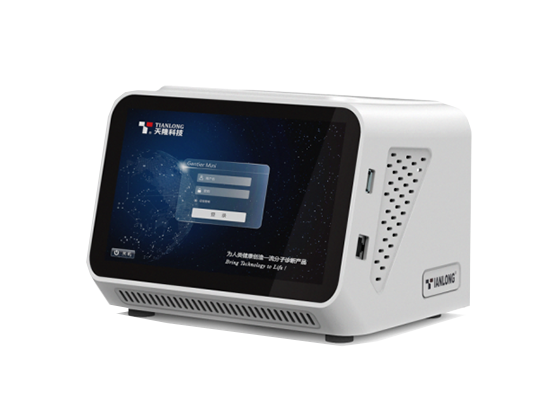

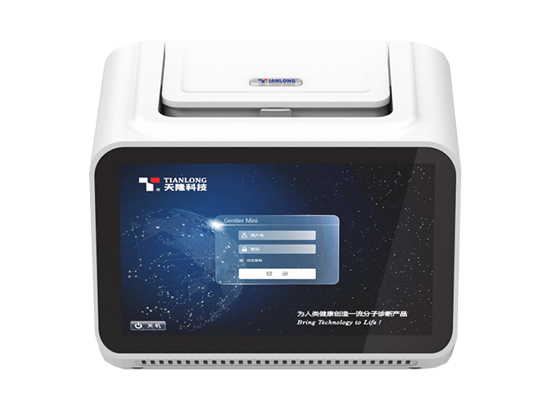

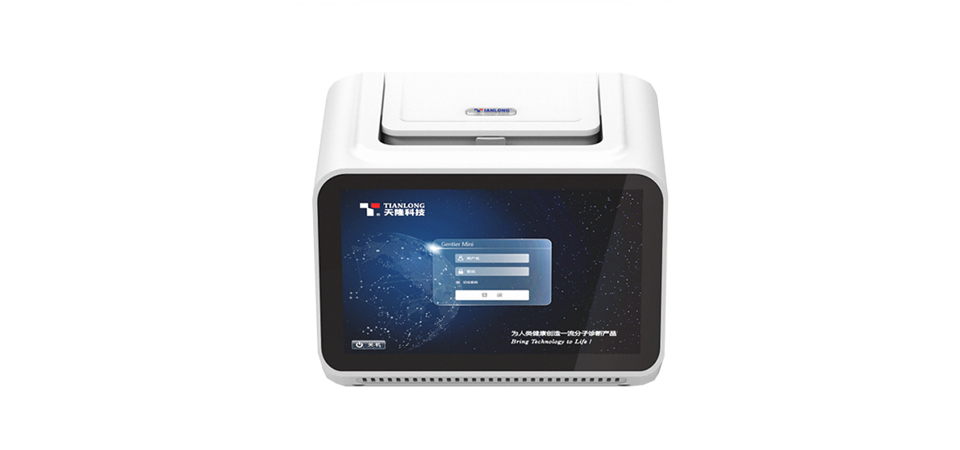

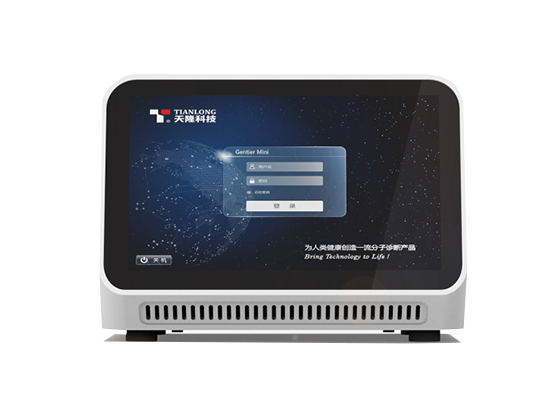

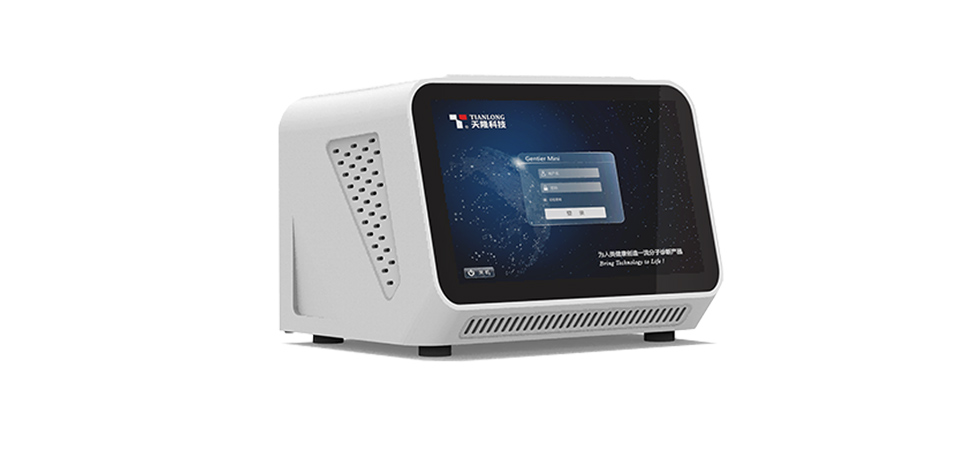

Gentier Mini+ 4 Channels Portable Real Time PCR System
Real time PCR refers to a method developed based on the traditional PCR to monitor the amplification of specific DNA sequences with continuous fluorescence measurement. Gentier Mini+ real time PCR instrument is designed for mobile or small laboratories to conduct onsite testing. With excellent performance and portability, Tianlong Gentier Mini+ solves the problem of limited space and fragmented samples in laboratories and enables you to carry out PCR tests with greater convenience, accuracy, and efficiency. As a result, portable PCR instruments with real time capacity are widely used in animal disease and infectious disease prevention and control, food safety, scientific research, and other fields. Gentier Mini+ is now a good companion for animals

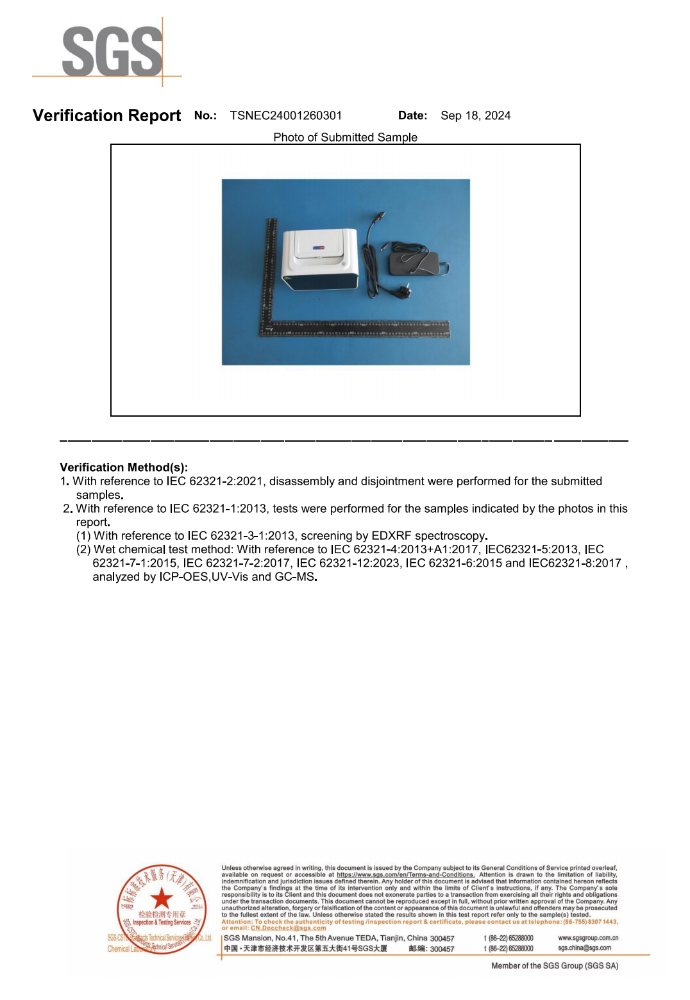

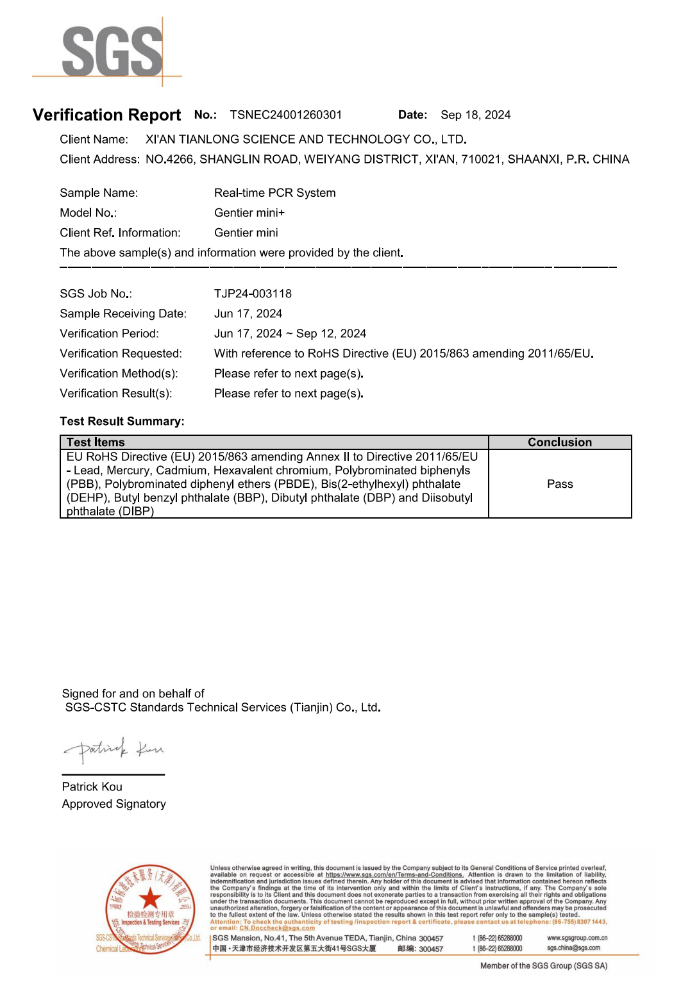

Gentier Mini+ has completed EU RoHS testing and issued a report that this product meets environmental requirements, and occupational health requirements.
-
-
01
Portable and convenient:Compact and lightweight, Gentier Mini real time PCR analyser takes up little space in the laboratory and can be moved easily to different locations without the need to recalibrate the fluorescence detection system after moving.
16 wells fluorescence scanning in 1 second:With 2 fluorescence channels, Gentier Mini can complete all 16 wells fluorescence scanning within 1 second, ensuring high PCR testing efficiency for lab professionals.
-
02
Powerful software analysis: Gentier Mini portable PCR system offers multiple functions including qualitative analysis, absolute quantitative analysis, relative quantitative analysis, SNP analysis, etc to suit various needs from basic detection to scientific research.
Instant PCR result analysis:
Mode1: see the result right on the device or print it with a thermal printer, particularly useful for fieldwork;
Mode 2: see through a PC software in a laboratory setting, allowing complex analysis to reveal more insights.
Always online: support WiFi, USB, internet interface connection for reliable remote monitoring and easy data sharing
| Model | Gentier Mini+ |
| Throughput | 1-16 |
| Fluorescence Channels | 4 |
| Scanning Time | 1s for all wells fluorescence scanning |
| Dye Compatibility | Channel 1: FAM, SYBR GreenⅠ, SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: Texas Red, ROX Channel 4: Cy5 |
| Heating Rate | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. |
| Cooling Rate | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. |
| Temperature Accuracy | ≤0.1℃ |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Special Temperature Protocol | Conventional PCR, touchdown PCR, long PCR, etc. |
| Hot Lid Temperature | 40℃-110℃ |
| Control Modes | Mode 1: 7-inch touch-screen of Gentier Mini Mode 2: computer software Mode 3: remote control via Windows tablet |
| Key Applications | Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc. |
| Result Analysis | 1: Direct analysis on Gentier Mini and results can be printed directly when connected to a thermal printer; 2: Analysis through PC software. |
| Experiment Files | Files can be downloaded by webpage login |
| Network Connection | Internet interface, USB, WiFi |
| Power Failure Protection | Automatically start running experiments after power supply |
| Specifications and Weight | 205mm(L)*156mm(W)*153mm(H)); 3.2kg |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes |
| Certificate | IVDR CE |
| Specification | |
|---|---|
| Model | Gentier Mini+ |
| Throughput | 1-16 |
| Fluorescence Channels | 4 |
| Scanning Time | 1s for all wells fluorescence scanning |
| Dye Compatibility | Channel 1: FAM, SYBR GreenⅠ, SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: Texas Red, ROX Channel 4: Cy5 |
| Heating Rate | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. |
| Cooling Rate | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. |
| Temperature Accuracy | ≤0.1℃ |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Special Temperature Protocol | Conventional PCR, touchdown PCR, long PCR, etc. |
| Hot Lid Temperature | 40℃-110℃ |
| Control Modes | Mode 1: 7-inch touch-screen of Gentier Mini Mode 2: computer software Mode 3: remote control via Windows tablet |
| Key Applications | Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc. |
| Result Analysis | 1: Direct analysis on Gentier Mini and results can be printed directly when connected to a thermal printer; 2: Analysis through PC software. |
| Experiment Files | Files can be downloaded by webpage login |
| Network Connection | Internet interface, USB, WiFi |
| Power Failure Protection | Automatically start running experiments after power supply |
| Specifications and Weight | 205mm(L)*156mm(W)*153mm(H)); 3.2kg |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes |
| Certificate | IVDR CE |
