Gentier 48E Real-Time PCR System
The Tianlong Gentier 48 E Real-time PCR system is an advanced PCR workstation that indulges in innovative optical technologies and powerful software to provide maximal reliability and efficiency for all your real-time PCR needs. The Gentier 48E PCR system is designed to fit the needs of small to medium-sized laboratories, mobile laboratories, and on-site testing. With 4 fluorescence channels, the Genetier 48E is capable of processing 48 samples in one test run, which makes experiments easier to operate and more accurate. The Gentier 48e PCR workstation is the perfect combination of excellent performance, efficiency, and portability.
-
-
01
48 samples to be scanned in 2s: Only 2s for all 48 wells of fluorescence scanning can significantly reduce testing time and improve efficiency for lab professionals.
More convenient with two configurations: Standalone configuration: 7-inch touch screen, direct print sample amplification curve, and CT values by connecting to a thermal printer(optional);
Power failure protection design: The Gentier 48E PCR system features a power failure protection design that can recover the experiment automatically. No more concern about instantaneous power failures.
PC control configuration: PC software control via connection, one PC can max control 10 instruments.
-
02
Efficient temperature control: The Gentier 48E PCR system only takes 40 minutes to complete a standard PCR amplification process. The temperature accuracy is controlled within 0.1°C..
Powerful software analysis: The Gentier 48E Real-time PCR system offers multiple functions, including relative quantification, absolute quantification, melting curve analysis, and SNP genotyping, and is compatible with other fluorescence-based analysis techniques that utilize the isothermal amplification technique.
User-friendly and more flexible: The Gentier 48E portable PCR workstation is designed to be small and light in weight. This can greatly improve this PCR workstations mobility for on-site testing.
| Model | Gentier 48R |
| Throughput | 1-48 |
| Fluorescence Channels | 2 |
| Fluorescence Scanning Time | 2s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source |
| Detector | Photodiodes (PDs) |
| Excitation Range | CH1: 470nm CH2:523nm CH3:570nm CH4:638nm |
| Detection Range | CH1:525nm CH2:564nm CH3:610nm CH4:685nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | ≥8.0 ℃/s ℃ |
| Cooling Rate | ≥6.2 ℃/s |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 8 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 Repeatability: cycle threshold (Ct) value CV≤0 0.5% |
| Software Functions | |
| Control Modes | Model1: 7 inch touch screen Mode 2: PC direct control |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
| Others | |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,S0-60HZ; 600VA |
| Weight | 11 Kg (net) |
| Instrument Dimension | 260*400*260mm (W*L*H) |
| Suitable Consumables | 0.2mL clear non-skirt 48-WELL plates, 8>tube strips, single tubes, etc. |

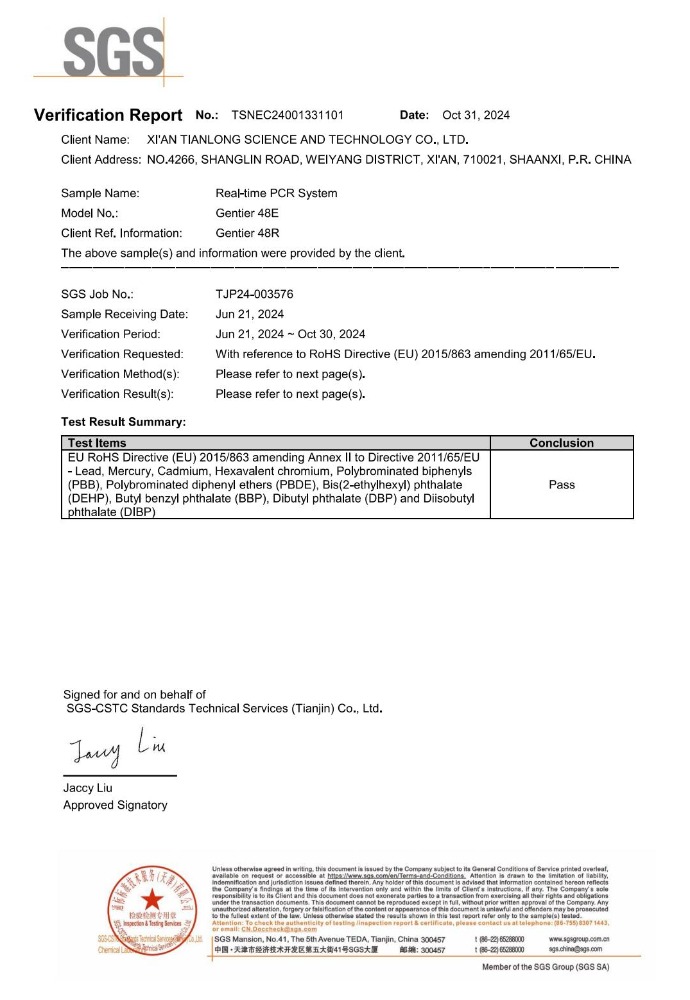

| Certificate | IVDR CE |
| Gentier 48R | |
|---|---|
| Throughput | 1-48 |
| Fluorescence Channels | 2 |
| Fluorescence Scanning Time | 2s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source |
| Detector | Photodiodes (PDs) |
| Excitation Range | CH1: 470nm CH2:523nm CH3:570nm CH4:638nm |
| Detection Range | CH1:525nm CH2:564nm CH3:610nm CH4:685nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | ≥8.0 ℃/s ℃ |
| Cooling Rate | ≥6.2 ℃/s |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 8 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 Repeatability: cycle threshold (Ct) value CV≤0 0.5% |
| Software Functions | |
| Control Modes | Model1: 7 inch touch screen Mode 2: PC direct control |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
| Others | |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,S0-60HZ; 600VA |
| Weight | 11 Kg (net) |
| Instrument Dimension | 260*400*260mm (W*L*H) |
| Suitable Consumables | 0.2mL clear non-skirt 48-WELL plates, 8>tube strips, single tubes, etc. |
| Certificate | IVDR CE |
