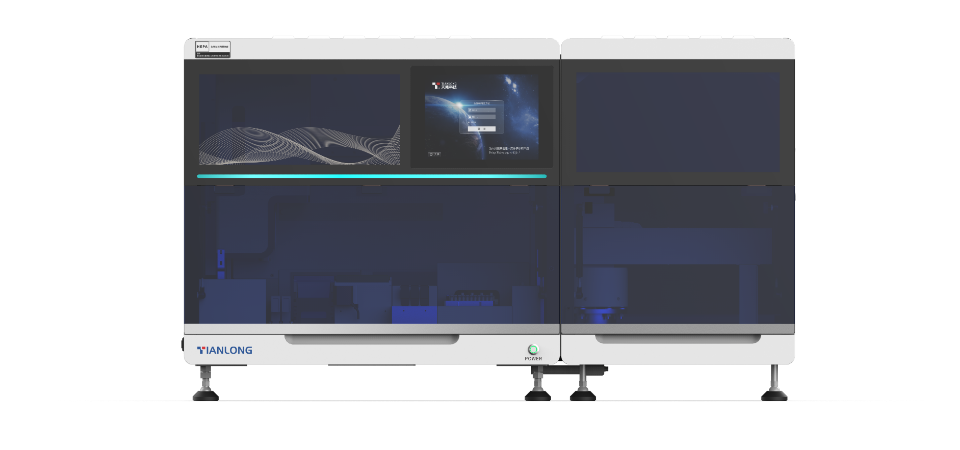

PANA 3200S+ Automatic Nucleic Acid Workstation
PANA 3200S+ is a fully automated nucleic acid workstation, which integrates the workflow of sample information scanning, sample loading, nucleic acid extraction, and PCR setup. It enables simultaneous parallel processing of 32 samples in one run, ensuring efficiency and reliability. Together with Tianlong Gentier96E/R Real-time PCR System, PANA 3200S+ will form an all-in-one detection solution, which can realize a true sample in-result out detection process and bring great convenience for professionals.
-
-
01
Fully automatic operation
Optimize laboratory workflow by integrating multiple steps into one system. Together with Tianlong Gentier96E/R Real-time PCR System, PANA 3200S+ will form an all-in-one detection solution
Broad compatibility with various sample types
Support various sample types, including plasma, serum, whole blood, and swab scrub solutions; Enable simultaneous setup of 3 PCR reaction systemsExtensive testing with diverse applications
Work with a wide range of testing items, covering respiratory infections, gastrointestinal infections, sexually transmitted infections, bloodborne infections, infectious diseases, genetic disease, pharmacogenomics
-
02
Minimized contamination control measures
1) UV disinfection; 2) Internal negative pressure; 3) HEPA filtration; 4) Rotary mixing to reduce aerosols; 5) Anti-droplet design; 6) Strict experimental partition; 7) Disposable waste containerSmart information management
Sample information scanning; Consumable identification; Visualization of the whole testing process and rapid traceability of abnormal samples
| Model | PANA 3200S+ | PANA 3200 |
| Throughput | 32 | 32 |
| Sample Processing Volume | 200μL-500μL | 200μL-500μL |
| PCR Centrifuge | Yes | No |
| PCR Tube Capping and Decapping |
YES (Tianlong specialized 8-strip PCR tube only) |
No |
| Certificate | CE | |
| Compatible Consumables |
Sample: Standard blood collection tube, various thread sampling tube, etc; Extraction: Tianlong specialized 96- deep well plate, rotary mixing sleeve; PCR: Tianlong specialized 8-strip PCR tube/0.1mL&0.2mL 96-well plate, depending on following PCR device. |
Sample: Standard blood collection tube, various thread sampling tube, etc; Extraction: Tianlong specialized 96- deep well plate, rotary mixing sleeve; PCR: Tianlong specialized 8-strip PCR tube/0.1mL&0.2mL 96-well plate, depending on following PCR device. |
| Contamination Control Measures | 1) UV disinfection; 2) Internal negative pressure; 3) HEPA filtration; 4) Rotary mixing to reduce aerosols; 5) Anti-droplet design; 6) Strict experimental partition; 7) Disposable waste container | 1) UV disinfection; 2) Internal negative pressure; 3) HEPA filtration; 4) Rotary mixing to reduce aerosols; 5) Anti-droplet design; 6) Strict experimental partition; 7) Disposable waste container |
| Pipetting Volume | 5μL~1000μL | 5μL~1000μL |
| Pipetting Performance |
Below 15μL: accuracy: A≤2%, repeatability: CV≤3.0% 15μL-50μL: accuracy: A≤1.5%, repeatability: CV≤1.5% Above 50μL: accuracy: A≤1.0%, repeatability: CV≤1.2 |
Below 15μL: accuracy: A≤2%, repeatability: CV≤3.0% 15μL-50μL: accuracy: A≤1.5%, repeatability: CV≤1.5% Above 50μL: accuracy: A≤1.0%, repeatability: CV≤1.2 |
| Liquid Level Detection | Capacitance & pressure sensing technology | Capacitance & pressure sensing technology |
| Extraction Temperature Control Range | Range from 30°C to 120°C for lysis and elution | Range from 30°C to 120°C for lysis and elution |
| PCR Reagent Refrigeration | Auto-cooling at startup (4℃-8℃) | Auto-cooling at startup (4℃-8℃) |
| Communication Specification | Communication Specification | Communication Specification |
| Power Supply | AC100-240V; 50Hz; 600VA | AC100-240V; 50Hz; 600VA |
| Touchscreen Display | 12.1-inch touchscreen | 12.1-inch touchscreen |
| Dimension | 773mm(W)*1403mm(L)*830mm(H) | 732mm(W)*860mm(L)*830mm(H) |
| Weight | 177.2Kg | 119.4Kg |

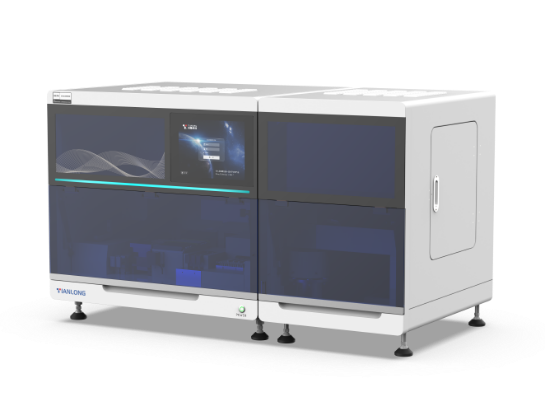

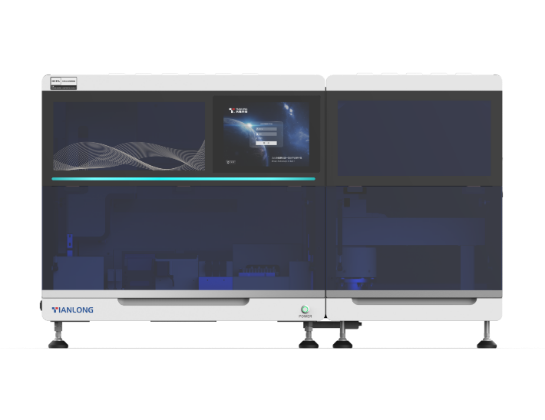

| PANA 3200S+ | |
|---|---|
| Throughput | 32 |
| Sample Processing Volume | 200μL-500μL |
| PCR Centrifuge | YES |
| PCR Tube Capping and Decapping | YES(Tianlong specialized 8-strip PCR tube only) |
| Compatible Consumables |
Sample: Standard blood collection tube, various thread sampling tube, etc; Extraction: Tianlong specialized 96- deep well plate, rotary mixing sleeve; PCR: Tianlong specialized 8-strip PCR tube/0.1mL&0.2mL 96-well plate, depending on following PCR device. |
| Contamination Control Measures | 1) UV disinfection; 2) Internal negative pressure; 3) HEPA filtration; 4) Rotary mixing to reduce aerosols; 5) Anti-droplet design; 6) Strict experimental partition; 7) Disposable waste container |
| Pipetting Volume | 5μL~1000μL |
| Pipetting Performance |
Below 15μL: accuracy: A≤2%, repeatability: CV≤3.0% 15μL-50μL: accuracy: A≤1.5%, repeatability: CV≤1.5% Above 50μL: accuracy: A≤1.0%, repeatability: CV≤1.2 |
| Liquid Level Detection | Capacitance & pressure sensing technology |
| Extraction Temperature Control Range | Range from 30°C to 120°C for lysis and elution |
| PCR Reagent Refrigeration | Auto-cooling at startup (4℃-8℃) |
| Communication Specification | Ethernet connection (TCP/IP); USB 2.0 |
| Power Supply | AC100-240V; 50Hz; 600VA |
| Touchscreen Display | 12.1-inch touchscreen |
| Dimension | 773mm(W)*1403mm(L)*830mm(H) |
| Weight | 177.2Kg |

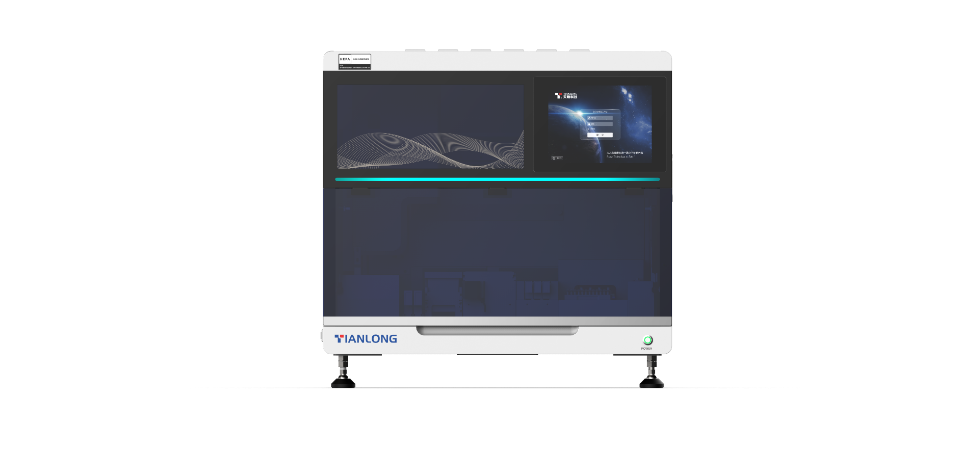

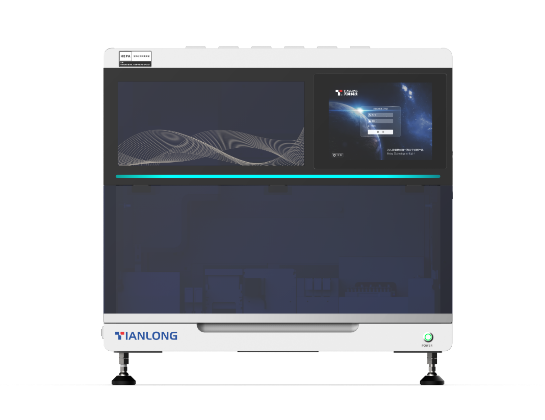

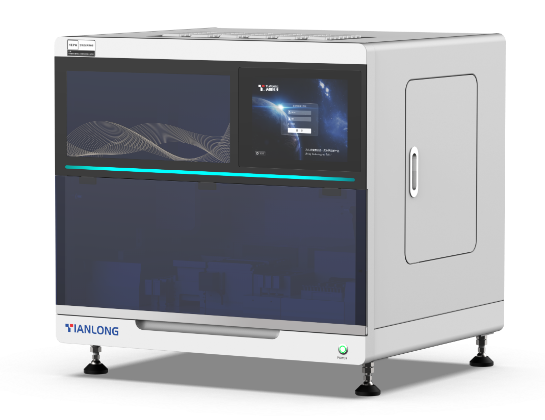

| PANA 3200S | |
|---|---|
| Throughput | 32 |
| Sample Processing Volume | 200μL-500μL |
| PCR Centrifuge | No |
| PCR Tube Capping and Decapping | No |
| Compatible Consumables |
Sample: Standard blood collection tube, various thread sampling tube, etc; Extraction: Tianlong specialized 96- deep well plate, rotary mixing sleeve; PCR: Tianlong specialized 8-strip PCR tube/0.1mL&0.2mL 96-well plate, depending on following PCR device. |
| Contamination Control Measures | 1) UV disinfection; 2) Internal negative pressure; 3) HEPA filtration; 4) Rotary mixing to reduce aerosols; 5) Anti-droplet design; 6) Strict experimental partition; 7) Disposable waste container |
| Pipetting Volume | 5μL~1000μL |
| Pipetting Performance |
Below 15μL: accuracy: A≤2%, repeatability: CV≤3.0% 15μL-50μL: accuracy: A≤1.5%, repeatability: CV≤1.5% Above 50μL: accuracy: A≤1.0%, repeatability: CV≤1.2 |
| Liquid Level Detection | Capacitance & pressure sensing technology |
| Extraction Temperature Control Range | Range from 30°C to 120°C for lysis and elution |
| PCR Reagent Refrigeration | Auto-cooling at startup (4℃-8℃) |
| Communication Specification | Ethernet connection (TCP/IP); USB 2.0 |
| Power Supply | AC100-240V; 50Hz; 600VA |
| Touchscreen Display | 12.1-inch touchscreen |
| Dimension | 732mm(W)*860mm(L)*830mm(H) |
| Weight | 119.4Kg |
PANA 3200S+ is a fully automated molecular diagnostic workstation from Tianlong for streamlined sample-in to result-out workflows.
