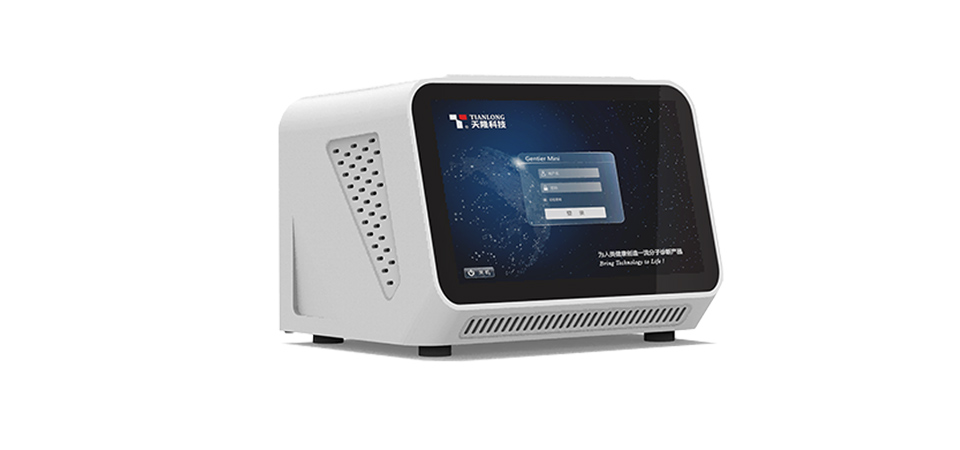

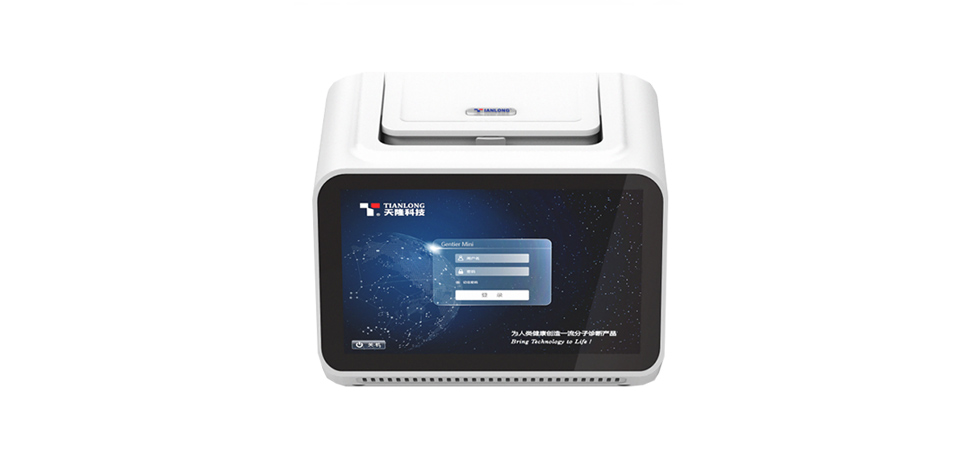

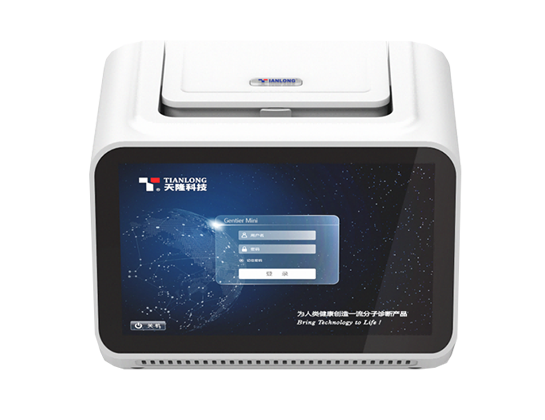

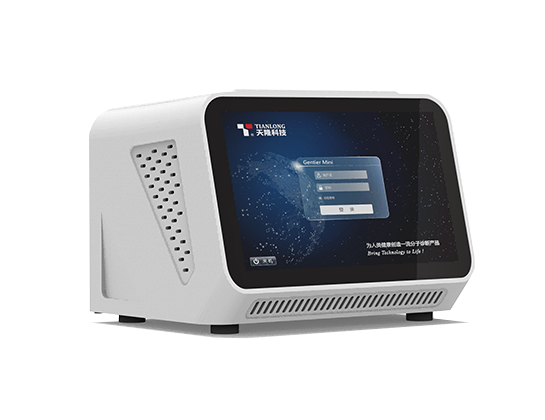

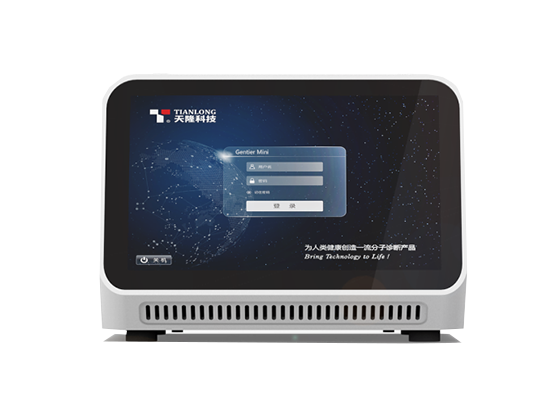

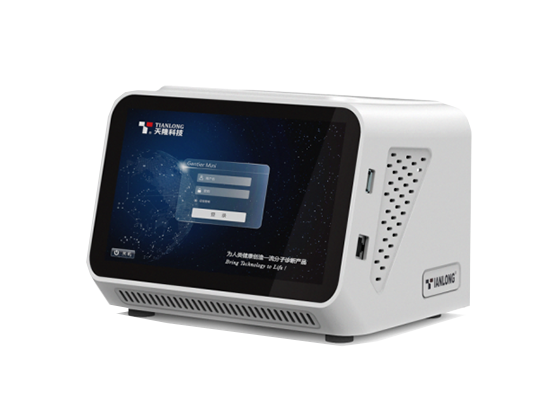

Gentier Mini+ 4 Channels Portable Real Time PCR System
Gentier Mini+ is designed for mobile, small laboratories, or on-site testing. With excellent performance and portability, Tianlong Gentier Mini+ revolutionizes and solves the problem of limited space and fragmented samples in laboratories, and makes your experiments easier to use, more accurate, and more efficient. It can be widely applied in animal disease and infectious disease prevention and control, food safety, scientific research, and other fields. Gentier Mini+ is now a good companion for animals.

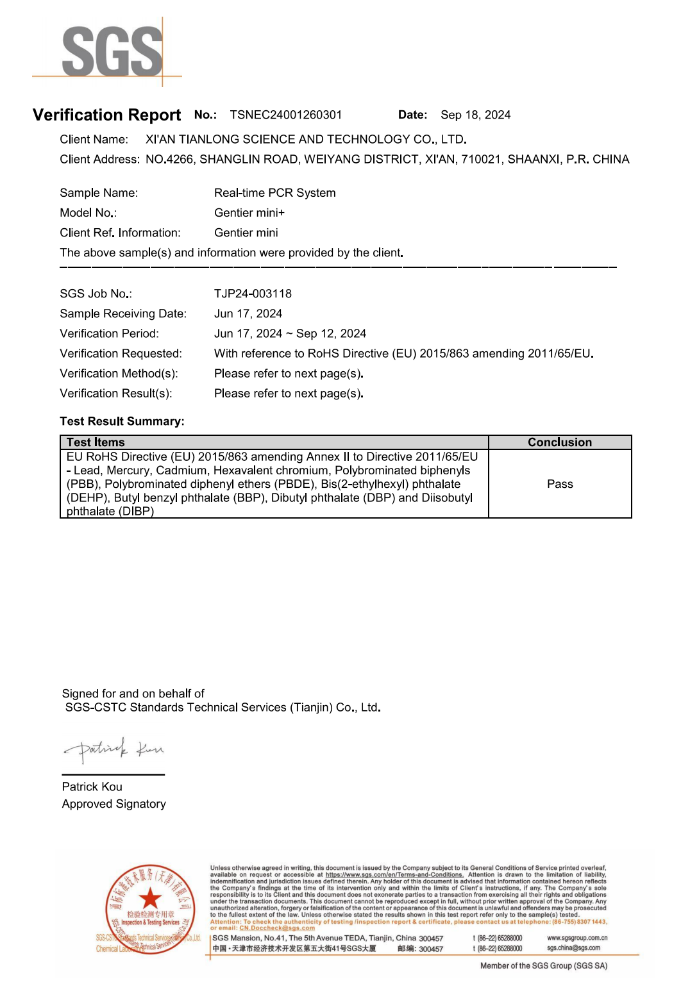

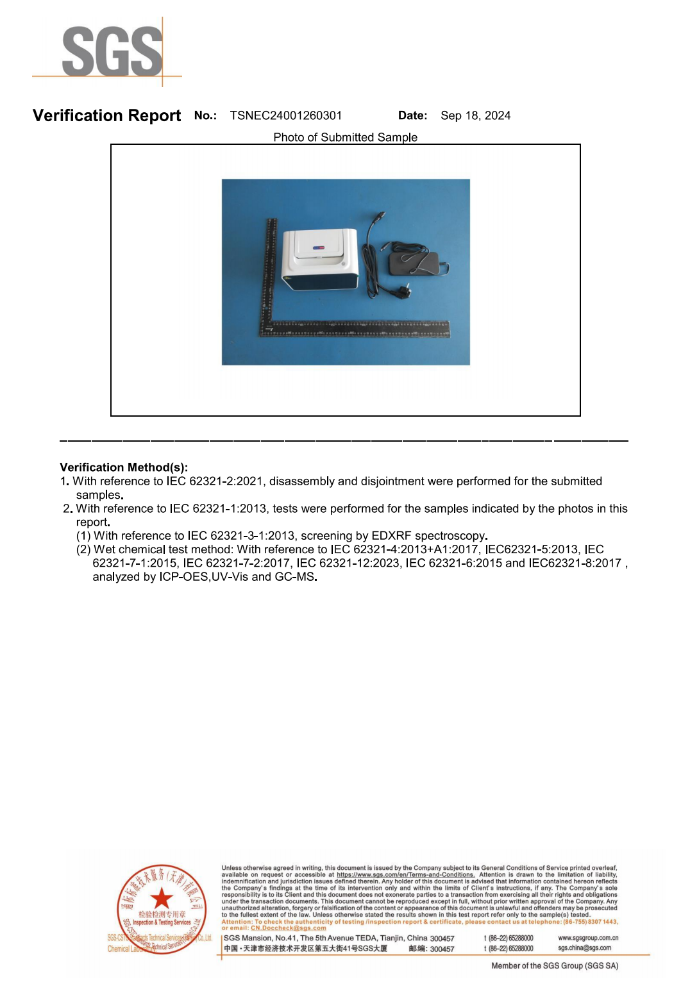

Gentier Mini+ has completed EU RoHS testing and issued a report that this product meets environmental requirements, and occupational health requirements.
-
-
01
Portable and convenient: Compact and lightweight, Gentier Mini helps save bench space and can be moved flexibly to your mobile laboratory for on-site testing. No need for fluorescence calibration after moving.
1s for 16 wells fluorescence scanning: With 2 fluorescence channels, Gentier Mini can complete all 16 wells fluorescence scanning within 1s, which improves efficiency for lab professionals.
Various control modes:
Mode 1:standalone control with 7-inch touch-screen;
Mode 2:computer software control;
Mode 3: remote control via tablet
-
02
Powerful software analysis: Gentier Mini offers multiple functions including qualitative analysis, absolute quantitative analysis, relative quantitative analysis, SNP analysis, etc.
Instant result analysis:
Mode1: direct analysis on Gentier Mini and results can be printed directly when connected to a thermal printer;
Mode 2: analysis through PC software.
Always online: Various ways to stay online: Wifi, USB and internet interface
| Model | Gentier Mini+ |
| Throughput | 1-16 |
| Fluorescence Channels | 4 |
| Scanning Time | 1s for all wells fluorescence scanning |
| Dye Compatibility | Channel 1: FAM, SYBR GreenⅠ, SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: Texas Red, ROX Channel 4: Cy5 |
| Heating Rate | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. |
| Cooling Rate | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. |
| Temperature Accuracy | ≤0.1℃ |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Special Temperature Protocol | Conventional PCR, touchdown PCR, long PCR, etc. |
| Hot Lid Temperature | 40℃-110℃ |
| Control Modes | Mode 1: 7-inch touch-screen of Gentier Mini Mode 2: computer software Mode 3: remote control via Windows tablet |
| Key Applications | Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc. |
| Result Analysis | 1: Direct analysis on Gentier Mini and results can be printed directly when connected to a thermal printer; 2: Analysis through PC software. |
| Experiment Files | Files can be downloaded by webpage login |
| Network Connection | Internet interface, USB, WiFi |
| Power Failure Protection | Automatically start running experiments after power supply |
| Specifications and Weight | 205mm(L)*156mm(W)*153mm(H)); 3.2kg |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes |
| Specification | |
|---|---|
| Model | Gentier Mini+ |
| Throughput | 1-16 |
| Fluorescence Channels | 4 |
| Scanning Time | 1s for all wells fluorescence scanning |
| Dye Compatibility | Channel 1: FAM, SYBR GreenⅠ, SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: Texas Red, ROX Channel 4: Cy5 |
| Heating Rate | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. |
| Cooling Rate | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. |
| Temperature Accuracy | ≤0.1℃ |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Special Temperature Protocol | Conventional PCR, touchdown PCR, long PCR, etc. |
| Hot Lid Temperature | 40℃-110℃ |
| Control Modes | Mode 1: 7-inch touch-screen of Gentier Mini Mode 2: computer software Mode 3: remote control via Windows tablet |
| Key Applications | Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc. |
| Result Analysis | 1: Direct analysis on Gentier Mini and results can be printed directly when connected to a thermal printer; 2: Analysis through PC software. |
| Experiment Files | Files can be downloaded by webpage login |
| Network Connection | Internet interface, USB, WiFi |
| Power Failure Protection | Automatically start running experiments after power supply |
| Specifications and Weight | 205mm(L)*156mm(W)*153mm(H)); 3.2kg |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes |
