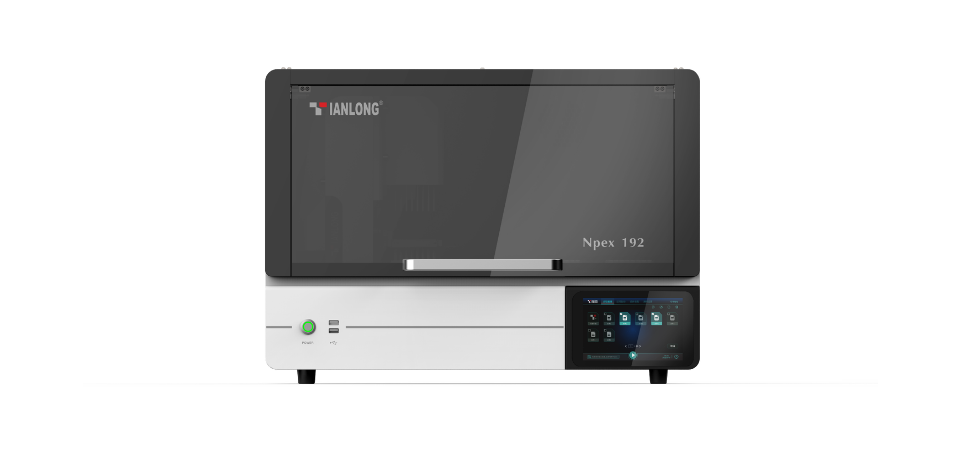

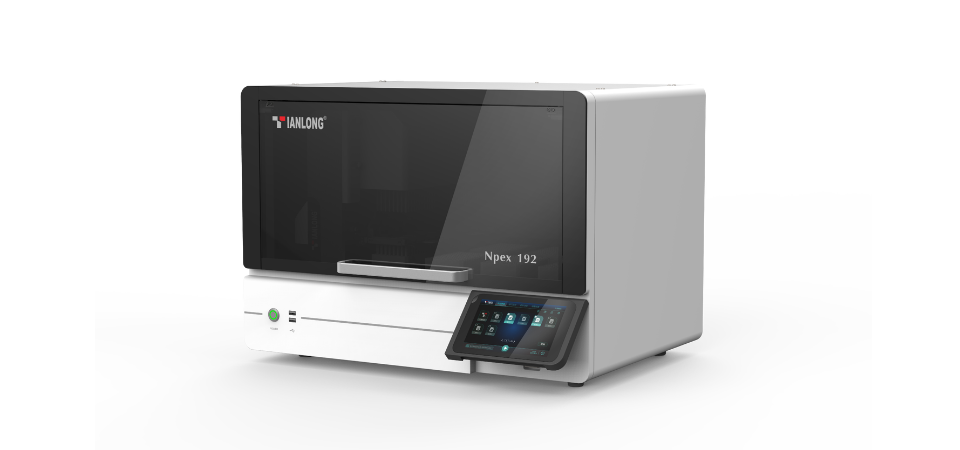

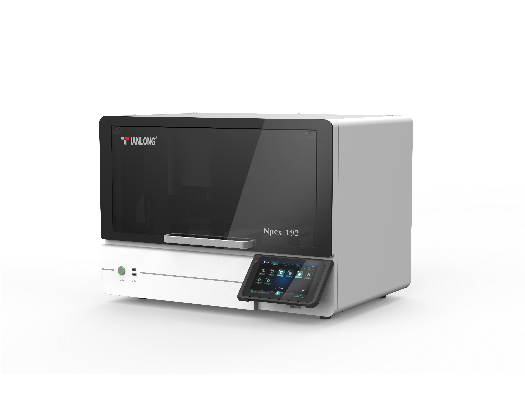

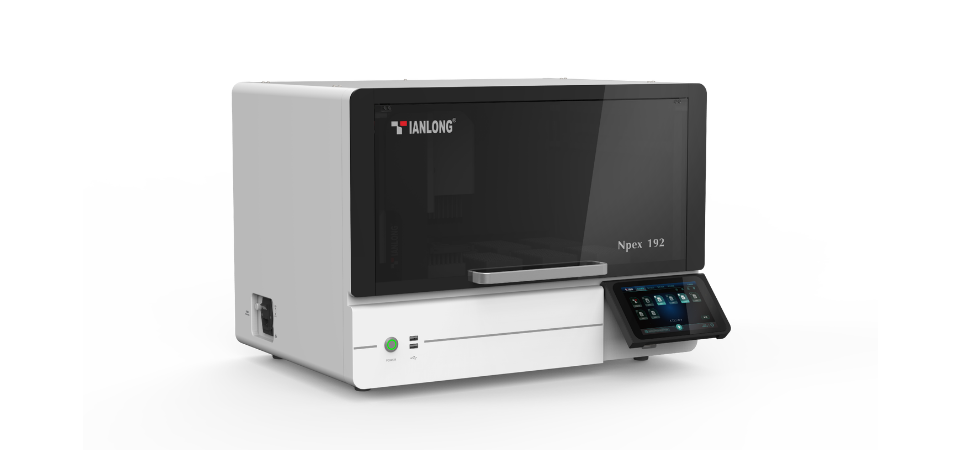

Npex 192 Automatic Nucleic Acid Extractor
Tianlong Nucleic Acid Extractor Npex 192 utilizes the proven magnetic bead method to extract highly purified nucleic acid from various samples. With ultra-high throughput and high efficiency, Npex 192 can complete nucleic acid extraction of 192 samples in 12 min. The combination of easy-to-use instruments with pre-loaded protocols selection, and magnetic bead-based sample preparation kits filled with unique reagents ensure rapid nucleic acid extraction and highly purified products.
-
-
01
Ultra-high throughput and rapid extraction:
Npex 192 can complete nucleic acid extraction of 192 samples in 12 min. Realizing high-throughput processing of parallel samples and providing high-quality nucleic acids for your downstream applications.
-
02
Compact in design and space-saving:
With 8-unit deep-well plate layout and Z-axis mechanical motion, Npex 192 can realize rapid extraction with the shortest movement. It can meet your high-throughput needs but also save your lab space.
-
03
Easy to operate and visual monitoring:
Built-in 7-inch full-color LCD screen, easy to operate the experiment; Built-in scanner can automatically scan and identify the extraction program and start running; Visual monitoring of nucleic acid extraction progress.
Efficient temperature control:
Separate temperature control for both lysis and elution. Precise temperature control ranges from room temperature to 120°C, supporting a wide range of reagent programs.
Efficient contamination control measures:
1) Negative-pressure HEPA filtration;
2) UV disinfection ;
3) Anti-dripping design
| Model | Npex 192 |
| Throughput | 1 ~ 192 |
| Processing Volume | 30~1000μl |
| Compatible Consumables | 96 deep-well-plate (1 ml reaction volume); Vertical mixing sleeve |
| Magnetic Bead Residue | ≤ 1% |
| Temperature Control Range | Temperature control separately for lysis and elution. Temperature ranges from room temperature to 120°C. |
| Vertical Mixing | 8 gears adjustable |
| Operating Language | Built-in bilingual (Chinese and English) operating languages. |
| Operation Mode | 7-inch color LCD touch screen operation |
| Protocol Management | Flexible to create, edit and delete protocols |
| QR Code Scanning | With built-in barcode scanner, automatic scanning, identification and running protocols |
| Operation Monitoring | Visual monitoring of nucleic acid extraction progress |
| Program Storage | > 500 programs can be stored |
| Contamination Control | 1) Negative-pressure HEPA filtration; 2) UV disinfection ; 3) Anti-dripping design |
| Auto Power-off | Auto power-off after UV disinfection |
| Power failure protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Connection Port Type | USB port |
| Network Connection | Ethernet port for remote control |
| Dimensions | 710 mm×535 mm×515 mm (L×W×H) |
| Weight | 55 kg |
| Power Supply | AC 220V, 50Hz |
| Npex 192 | |
|---|---|
| Throughput | 1 ~ 192 |
| Processing Volume | 30~1000μl |
| Compatible Consumables | 96 deep-well-plate (1 ml reaction volume); Vertical mixing sleeve |
| Magnetic Bead Residue | ≤ 1% |
| Temperature Control Range | Temperature control separately for lysis and elution. Temperature ranges from room temperature to 120°C. |
| Vertical Mixing | 8 gears adjustable |
| Operating Language | Built-in bilingual (Chinese and English) operating languages. |
| Operation Mode | 7-inch color LCD touch screen operation |
| Protocol Management | Flexible to create, edit and delete protocols |
| QR Code Scanning | With built-in barcode scanner, automatic scanning, identification and running protocols |
| Operation Monitoring | Visual monitoring of nucleic acid extraction progress |
| Program Storage | > 500 programs can be stored |
| Contamination Control | 1) Negative-pressure HEPA filtration; 2) UV disinfection ; 3) Anti-dripping design |
| Auto Power-off | Auto power-off after UV disinfection |
| Power failure protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Connection Port Type | USB port |
| Network Connection | Ethernet port for remote control |
| Dimensions | 710 mm×535 mm×515 mm (L×W×H) |
| Weight | 55 kg |
| Power Supply | AC 220V, 50Hz |
