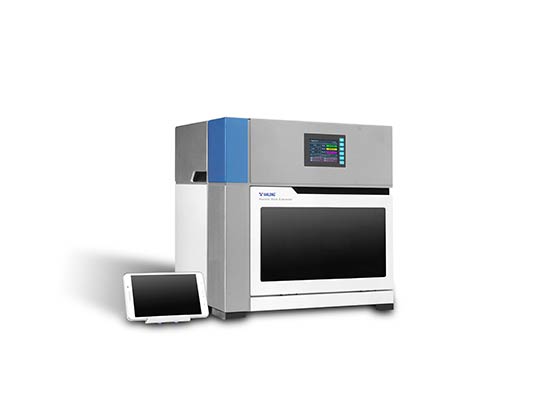

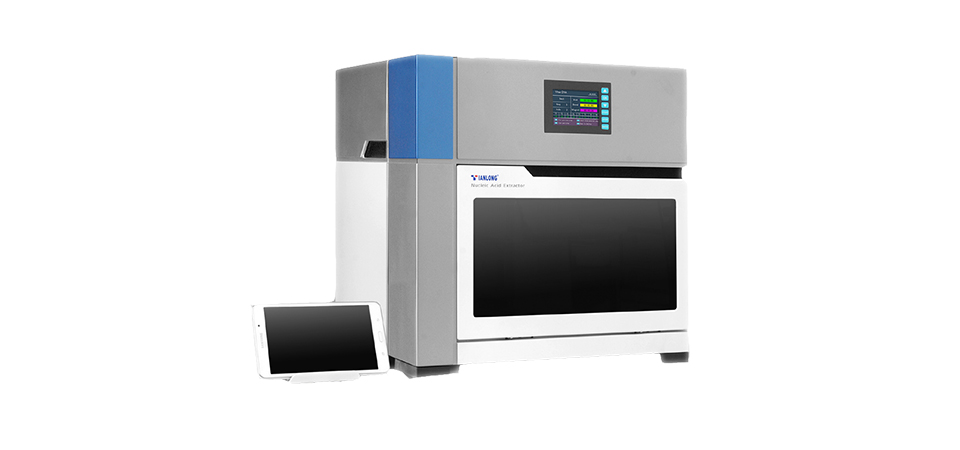

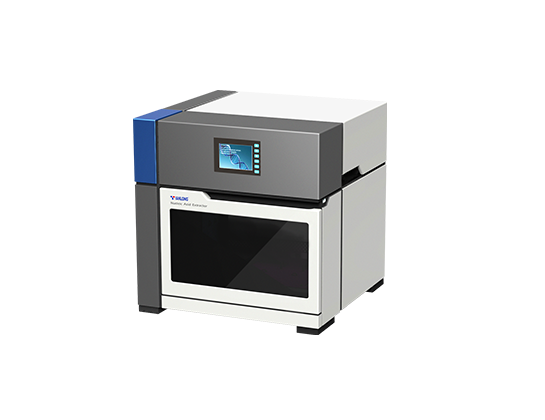

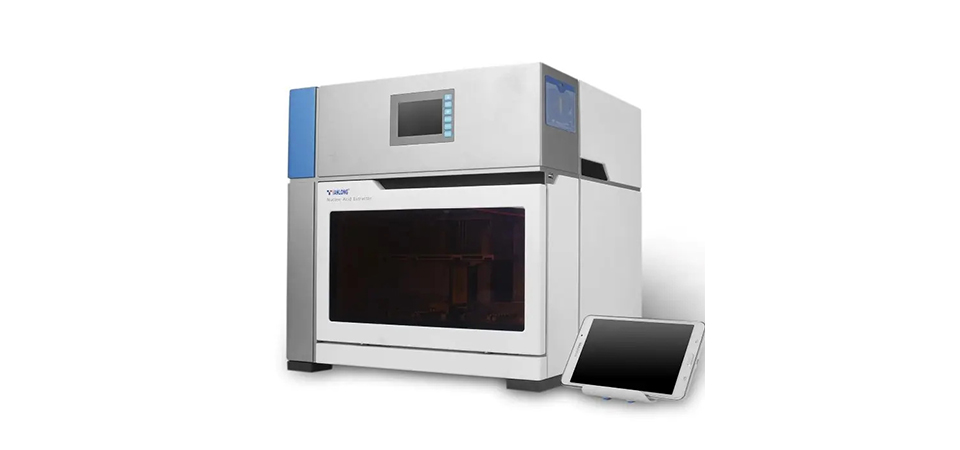

Libex Nucleic Acid Extractor
Tianlong Nucleic Acid Extractor Libex utilizes the proven magnetic bead method to extract highly purified nucleic acid from a wide range of sample types relevant for molecular diagnostics, genetic identity testing, forensic testing, biomedical research, and gene expression analysis. The combination of easy-to-use instruments with pre-loaded protocols selection, and magnetic bead-based sample preparation kits filled with unique reagents ensure rapid nucleic acid extraction and highly purified products.

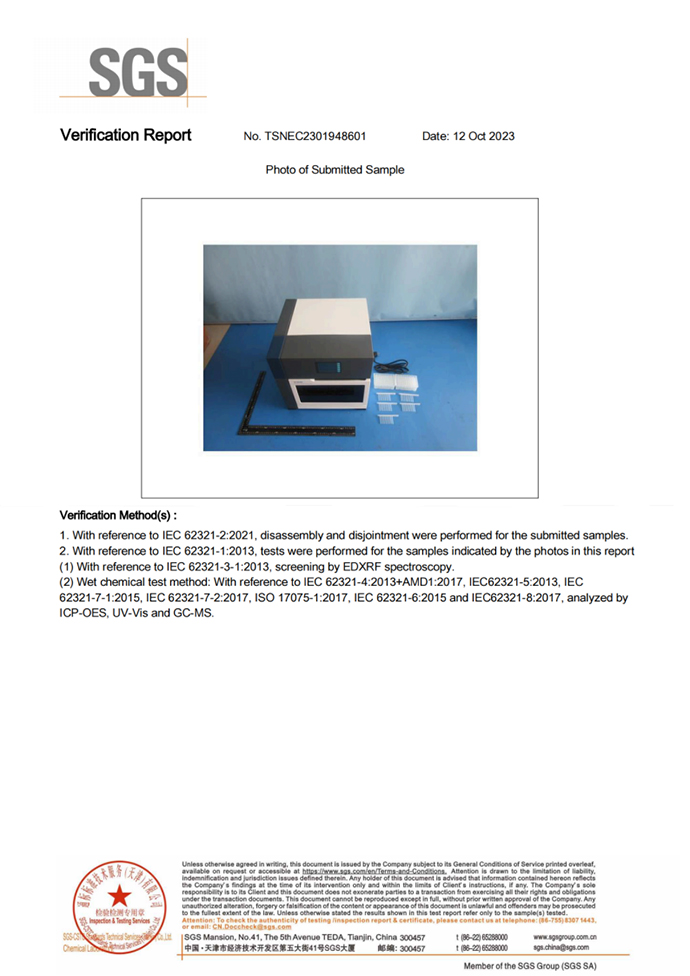

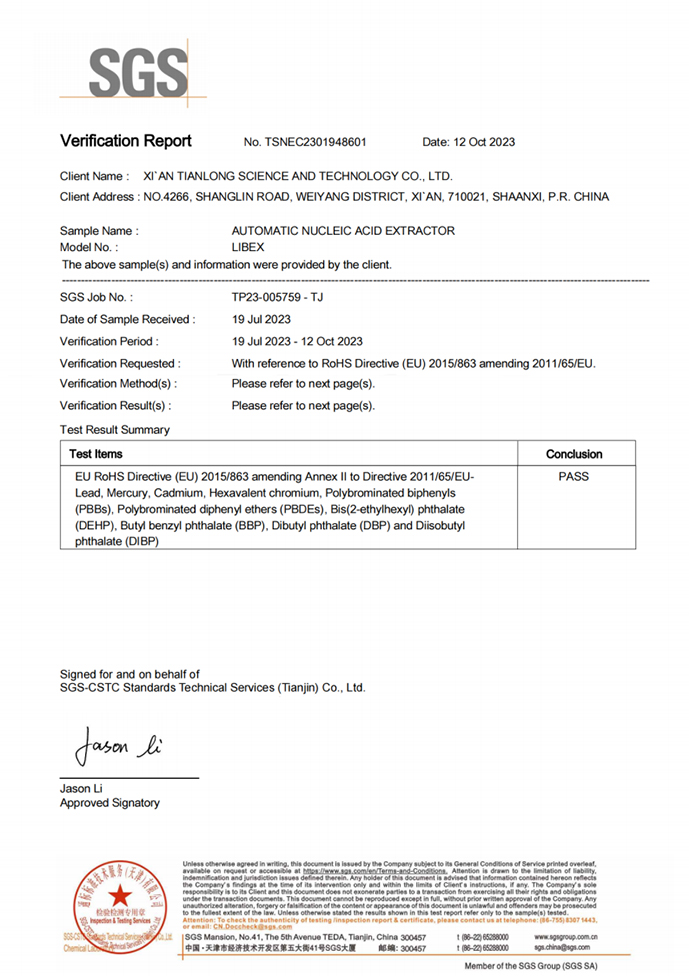

Libex has completed EU RoHS testing and issued a report that this product meets environmental requirements, and occupational health requirements.
-
-
01
Reliable results you can depend on: With magnetic bead-based extraction kits with pre-filled design, experimenters need only one step to start the extraction, which greatly minimizes manual error and ensures high purity of nucleic acid.
More efficient extraction process: When Libex collocates with pre-filled extraction reagents,32 samples of nucleic acid for COVID DNA can be extracted within 15 minutes (extraction time varies from reagent to reagent).
More convenient with two configurations:
Standalone configuration: Machine keypad operation;
APP control configuration: Cloud-enabled control via Android smartphones/tablets.
-
02
Efficient contamination control measures: With unique sample cross-contamination control system and UV disinfection function, cross-contamination can be minimized.
Simple and remarkable software: With the convenient software based on Android, a protocol can be set up and started with just a few clicks on your phones/tablets.Friendly and intuitive interface make it simple even for first time user.
| Model | Libex |
| Throughput | 32 |
| Processing Volume | 30~1000μl |
| Recommended Sample Volume | 200μl |
| Magnetic Bead Residue | ≤1% |
| Suitable Consumables | 96-well plates. 6- tube strips |
| Heating Temperature | Lysis heating: room temperature to 120℃ Elution heating: room temperature to 120℃ |
| Mixing Mode | Optional multi-modes and multi-gears for mixing |
| Reagent Type | Magnetic beads-based extraction kits |
| Operation Mode | A. Cloud-enabled control via smart phones/tablets (Android) B. Machine keypad operation |
| Experimental Storage | Up to >500 groups of programs saved in the Android app Up to 15 groups of programs saved in device |
| Program Management | Programs can be created, edited, applied and deleted with high flexibility |
| Contamination Control | Built-in UV disinfection module |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Connection port type | USB, Ethernet, USB Type-B |
| Network Connection | Cloud-enabled control on smart phone/tablet |
| Instrument Dimensions | 435mmx440mmx445mm(WxLxH) |
| Weight | 31.5kg (net) |
| Power supply | AC 100-240V, 50/60+1Hz; 600W |
| Operating temperature range | 10-30℃ |
| Operating humidity range | 20%-85% |
| Certificate | IVDR CE；RoHS |
| Libex | |
|---|---|
| Throughput | Throughput |
| Processing Volume | 30~1000μl |
| Recommended Sample Volume | 200μl |
| Magnetic Bead Residue | ≤1% |
| Suitable Consumables | 96-well plates. 6- tube strips |
| Heating Temperature | Lysis heating: room temperature to 120℃ Elution heating: room temperature to 120℃ |
| Mixing Mode | Optional multi-modes and multi-gears for mixing |
| Reagent Type | Magnetic beads-based extraction kits |
| Operation Mode | A. Cloud-enabled control via smart phones/tablets (Android) B. Machine keypad operation |
| Experimental Storage | Up to >500 groups of programs saved in the Android app Up to 15 groups of programs saved in device |
| Program Management | Programs can be created, edited, applied and deleted with high flexibility |
| Contamination Control | Built-in UV disinfection module |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Connection port type | USB, Ethernet, USB Type-B |
| Network Connection | Cloud-enabled control on smart phone/tablet |
| Instrument Dimensions | 435mmx440mmx445mm(WxLxH) |
| Weight | 31.5kg (net) |
| Power supply | AC 100-240V, 50/60+1Hz; 600W |
| Operating temperature range | 10-30℃ |
| Operating humidity range | 20%-85% |
| Certificate | IVDR CE；RoHS |
