GeneMix Pro Automatic Sample Processing System

- GeneMix Pro Automatic Sample Processing System

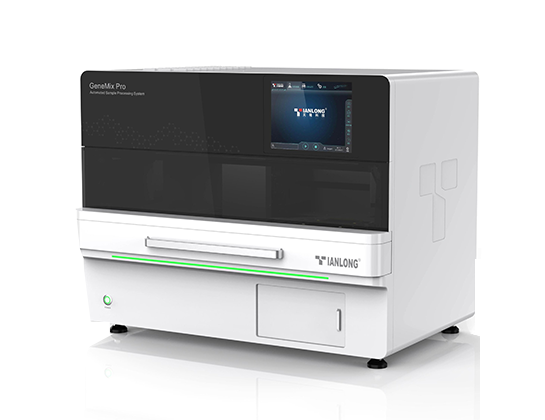

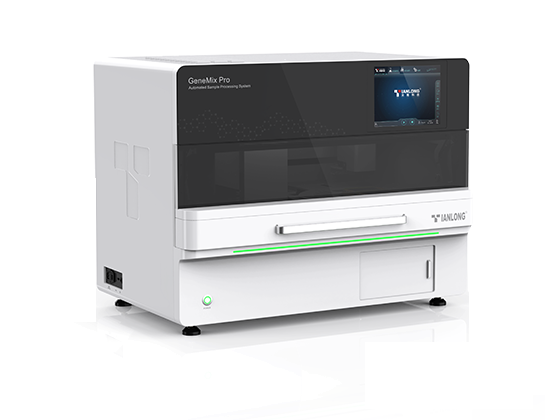

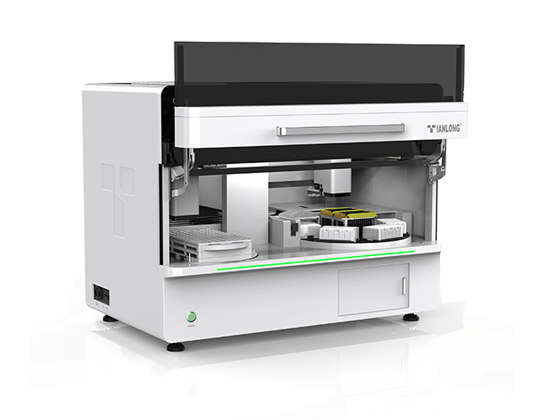

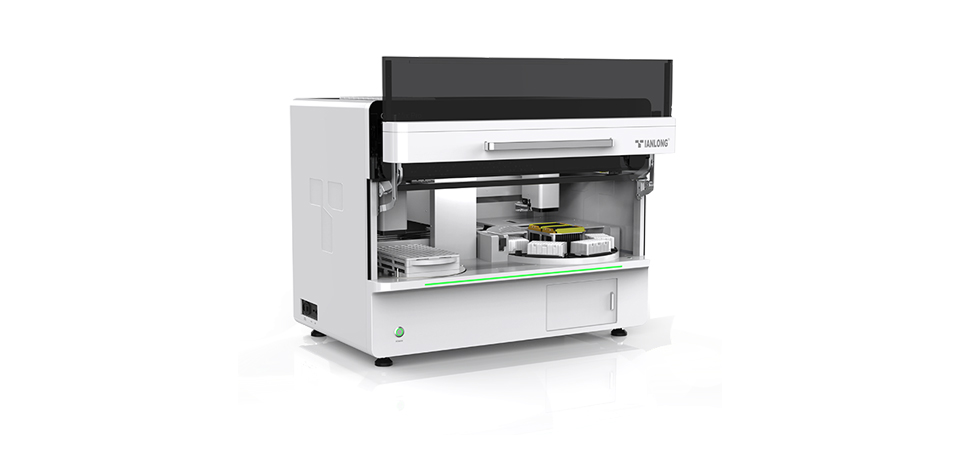

  Tianlong GeneMix Pro – Automatic Sample Processing System. Designed for automating laboratory workflow, maintain sample integrity with a hands-free method of capping and decapping tubes quickly and easily, GeneMix Pro can process 96 samples within 20min and free professionals from tedious mechanical operations. The workflow includes automated uncap/recap for sample tubes, sample pipetting and dispensing, Proteinase K/lnternal reference reagent loading, automatic mixing of sample tubes. GeneMix Pro can automate laboratory workflow and improve efficiency and safety for medical professionals.

Product Brochure

Product Video

Quote

Features
Specifications

Automate laboratory workflow: With an automated sample preparation process,96 samples can process within 20 minutes from sample tube scanning to deep well plate scanning.
Highly compatible: Compatible with the various specification of sampling tubes and deep-well plates, ready for use with customized specification.
Easy of use: Sample-rack-plate' information scanning automatically, sample to result in closed-loop management can save time and minimize human error.
Superior sample protection: With built-in UV light disinfection in the experimental chamber, drop catcher technology and an enclosed design with an internal negative pressure system to ensure sample integrity.

Specifications

Swipe Left

Product Name	Automatic Sample Processing System-GeneMix Pro
Throughput	96
Certificate	CE CB RoHS
Handling Time	≤20 minutes for 96 samples
Compatible Sampling Tubes	Diameter: 13-19mm; Height: 55-115mm Compatible with 5mL, l0mL and 20mL screwcap sampling tubes; 5-in-1, 10-in-1 mixed sampling tubes direct load with cap; Direct loading with cap for sampling tubes with swab; Preset with conventional standard sampling tubes, ready for use with customized sampling tubes specifications
Compatible Deep-Well Plates	616T standard 1mL deep-well plates 196T standard 1mL deep-well plates Compatible with 3mL deep-well plates (including 3 * 8T 3mL large-system deep-well plates of Tianlong) Preset with conventional standard deep-well plates, ready for use with customized deep-well plate specifications
Pipetting	Dual independent pipetting modules Pipetting volume: 5 -1000 μL Liquid level sensor Pipetting volume detection
Pipetting Accuracy	5 μL~50 μL: Er: ≤3.5% 50 μL~200 μL: Er: ≤2.5% ≥ 200 μL: Er: ≤2.0%
Pipetting Repeatability/CV	5 μL~50 μL: CV: ≤ 2.5% 50 μL~200 μL: CV: ≤ 1.5% ≥ 200 μL: CV: ≤ 1.0%
Smart Information System	Sampling tube information scanning (ID code & QR code) Deep-well plate status identification (open system) /information scanning (Tianlong system) Automatic barcode scanning of sample racks ‘Sample – rack – plate’ information scanning, ‘sample to result’ in closed-loop management Lis system link
Touch Screen	12.1 inch LCD touch screen
Internet Port	USB 3.0/Ethernet port
Dimensions	1130mm(L) x780mm(W) x 920mm(H)
Net Weight	<200Kg
Power Supply	Voltage: 100 – 240 V; Frequency: 50/60HZ; Rated power: 60OVA
Temperature	15°C-35°C
Relative Humidity	35%RH-70%RH, non-condensing
Atmospheric Pressure Range	56-106Kpa (Altitude ≤ 4000m)

Automatic Sample Processing System-GeneMix Pro
Throughput	96
Handling Time	≤20 minutes for 96 samples
Compatible Sampling Tubes	Diameter: 13-19mm; Height: 55-115mm Compatible with 5mL, l0mL and 20mL screwcap sampling tubes; 5-in-1, 10-in-1 mixed sampling tubes direct load with cap; Direct loading with cap for sampling tubes with swab; Preset with conventional standard sampling tubes, ready for use with customized sampling tubes specifications
Compatible Deep-Well Plates	616T standard 1mL deep-well plates 196T standard 1mL deep-well plates Compatible with 3mL deep-well plates (including 3 * 8T 3mL large-system deep-well plates of Tianlong) Preset with conventional standard deep-well plates, ready for use with customized deep-well plate specifications
Pipetting	Dual independent pipetting modules Pipetting volume: 5 -1000 μL Liquid level sensor Pipetting volume detection
Pipetting Accuracy	5 μL~50 μL: Er: ≤3.5% 50 μL~200 μL: Er: ≤2.5% ≥ 200 μL: Er: ≤2.0%
Pipetting Repeatability/CV	5 μL~50 μL: CV: ≤ 2.5% 50 μL~200 μL: CV: ≤ 1.5% ≥ 200 μL: CV: ≤ 1.0%
Smart Information System	Sampling tube information scanning (ID code & QR code) Deep-well plate status identification (open system) /information scanning (Tianlong system) Automatic barcode scanning of sample racks ‘Sample – rack – plate’ information scanning, ‘sample to result’ in closed-loop management Lis system link
Touch Screen	12.1 inch LCD touch screen
Internet Port	USB 3.0/Ethernet port
Dimensions	1130mm(L) x780mm(W) x 920mm(H)
Net Weight	<200Kg
Power Supply	Voltage: 100 – 240 V; Frequency: 50/60HZ; Rated power: 60OVA
Temperature	15°C-35°C
Relative Humidity	35%RH-70%RH, non-condensing
Atmospheric Pressure Range	56-106Kpa (Altitude ≤ 4000m)
